| Rated current (Iu) | Filter products by 4 A |
|---|---|
| Number of poles | Filter products by 4P |
| Supply voltage | Filter products by 250 V DC |
| Degree of protection (IP) | Filter products by IP67 / IP66 |
| Mounting | Filter products by M16 x 1.5 rear mounting |
Field Switching, Sensing & SafetySensor connectors & Cables

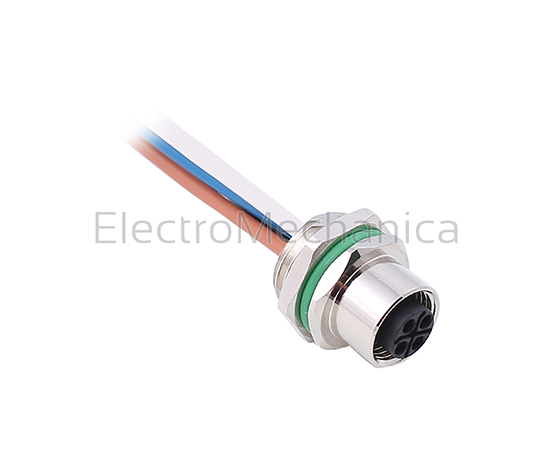

120104-04-001 – Panel Mount M12 4PIN Female Metal
Order code
Select a variant in this series
- 2 A
- 4 A
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R234,15
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Panel Mount M12 4PIN Female Metal — ElectroMechanica order code 120104-04-001. Rated current 4 A; 4P; supply 250 V DC; IP67 / IP66.
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)
Accessories & add-ons 6
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
120104-04-001 — Panel Mount M12 4PIN Female Metal, a m12 circular connector by ElectroMechanica.
M12 circular panel mount connectors A coding General features: Termination: Solder terminal Contact resistance: 10mΩ Protection degree: IP67/68 Operating temperature: -25°C … +85°C Termination: Screw clamp terminal Metallic panel mount circular connectors Contact material: Gold plated Phosphor Brass/Bronze.
Key specifications: rated current 4 A; 4P; supply 250 V DC; IP67 / IP66; M16 x 1.5 rear mounting mounting.
Ordering information
- Order code:
120104-04-001 - Manufacturer: ElectroMechanica
- Supplied: each
- Datasheet: manufacturer datasheet for 120104-04-001
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by 120104-04-001 |
|---|---|
| Product name | Filter products by Panel Mount M12 4PIN Female Metal |
| Product type | Filter products by M12 circular connector |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|---|
| Rated current (Iu) | Filter products by 4 A |
| Nominal current | Filter products by 4A |
| Voltage ac dc | Filter products by 250V |
| Supply voltage | Filter products by 250 V DC |
Mechanical & mounting
| Mounting | Filter products by M16 x 1.5 rear mounting |
|---|---|
| Plug angle | Filter products by Straight |
| Number of pins | Filter products by 4 |
Wiring & termination
| Connection | Filter products by Connector |
|---|---|
| Connector gender | Filter products by female |
| Terminal | Filter products by Solder |
Environment & protection
| Degree of protection (IP) | Filter products by IP67 / IP66 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
