Authorised ElectroMechanica distributor for Africa
Key specifications

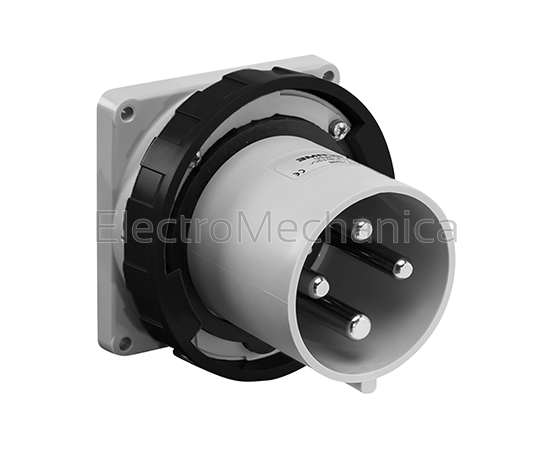

248.16966 – 16A 3P+E IP67 Flush APP Inlet 7h | Scame
Your price
Excluding VAT · per unit · volume pricing available on request
Overview
248.16966 – 16A 3P+E IP67 Flush APP Inlet 7h | Scame
Industrial plugs and sockets
248.16966 is supplied by ElectroMechanica as part of the Scame range. Prices shown exclude VAT.
Technical specifications
| Product Series | OPTIMA |
|---|---|
| Rated Current | 16A |
| Rated Insulation Voltage | 690 VAC |
| Operating Temperature | -25 – +40°C (max operating temperature +60°C) |
| Glow Wire Test | 650/850°C |
| Material | Engineering plastic (halogen free) |
| Number Of Poles | 3P+E |
| Impact Resistance (IK) | IK08 (1.7kg with a striking energy of 2J) |
| Pin Configuration | 4pin |
| Degree Of Protection (IP) | IP67/8/9 |
| Product Type | Appliance inlet |
| Flange Size | 75 x 75 |
Technical specifications
Data supplied by the manufacturer. Please confirm against the official datasheet before ordering.
Ordering & identification
Electrical ratings
Sensing & measurement
Protection & compliance
Mechanical & materials
Wiring & termination
Documents & downloads
Official documentation for this order code.
Ordering & delivery
How to order
Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.
Stock & lead time
Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.
Delivery
Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.
