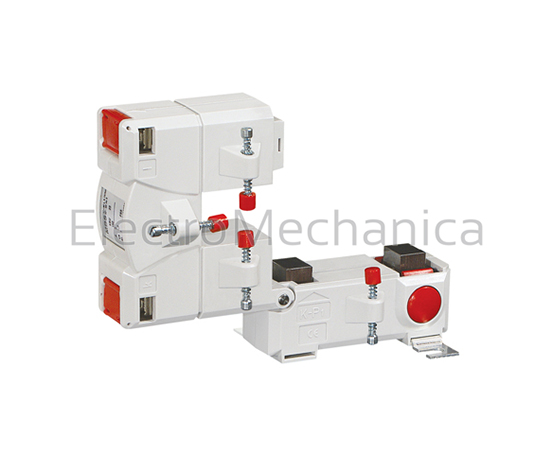

80044 – KBU 23 250/5A Split Core CT Cl 1 | MBS
Order code
List R2 457,00 Your price R1 719,90
Per unit · volume pricing available on request
excl. VAT R1 977,89 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
KBU 23 250/5A Split Core CT Cl 1 — MBS order code 80044. Ratio 250/5A; 20 mm.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)Download instructions (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
80044 — KBU 23 250/5A Split Core CT Cl 1, a split-core current transformer by MBS. Listed under Current transformers on the MBS catalogue at RMS-EM.Africa.
About 80044
Splitcore current transformer The split measuring system facilitates a simple installation into existing panel boards without additional mounting requirements. Simply open the locking mechanism of the current transformer place around the primary conductor and lock ensuring that the circuit is closed. Once the secondary conductors are connected, the unit is ready for operation. General specifications: Isolation class: E Maximum operating voltage: Um ° 0.72 kV Nominal frequency: 50Hz (others on request) Nominal thermal short-time current: Ith = 60 x In Over-current limiting factor: FS 5 up to 1500 A nominal current.
80044 key specifications
Key specifications: ratio 250/5A; 20 mm.
Ordering information for 80044
- Order code:
80044 - Manufacturer: MBS
- Supplied: each
- Datasheet: manufacturer datasheet for 80044
80044 — frequently asked questions
Where is the datasheet for 80044?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where MBS publishes them.
Is 80044 a genuine MBS product?
Yes. 80044 is supplied through the manufacturer’s authorised channel with the standard MBS warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | 80044 |
|---|---|
| Product name | Filter products by KBU 23 250/5A Split Core CT Cl 1 |
| Brand | Filter products by MBS |
| Product type | Filter products by Split-core current transformer |
| Product series | Filter products by KBU 23 |
| Model | Filter products by KBU 23 |
Electrical ratings
| Transformation ratio | Filter products by 250/5A |
|---|
Mechanical & mounting
| Dimensions | Filter products by 20 mm |
|---|
Wiring & termination
| Round conductor | Filter products by Split core |
|---|---|
| Primary bar conductor | Filter products by 23 x 50 mm maximum |
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Burden | Filter products by 1.5VA |
|---|
