MD MicrodetectorsField Switching, Sensing & SafetyInductive proximity sensors
AK1/AN-1A – M18 5mm NPN NO 10-30VDC Proximity
Order code
R607,95
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
M18 5mm NPN NO 10-30VDC Proximity — MD Microdetectors AK1/AN-1A. Degree Of Protection (IP): IP67. Order from Shop ElectroMechanica; prices exclude VAT.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

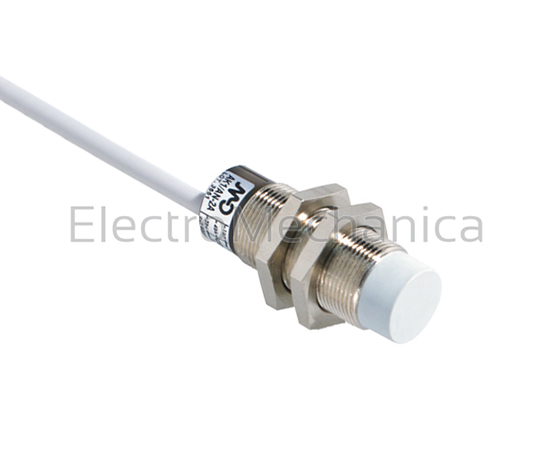

AK1/AN-1A – M18 5mm NPN NO 10-30VDC Proximity | MD Microdetectors
AK1 series M18 cylindrical proximity switches
AK1/AN-1A is supplied by ElectroMechanica as part of the MD Microdetectors range. Prices shown exclude VAT.
Technical specifications
| Product Series | AK series |
|---|---|
| Product Type | M18 cylindrical inductive proimity sensor |
| Supply Protection | Short circuit and polarity reversal protection |
| Degree Of Protection (IP) | IP67 |
| LED Indication | Yellow LED output state |
| Housing Material | Nickel-plated brass |
| Supply Voltage | 10 – 30 VDC |
| Flush Mount | Yes |
| Non-Flush Mount | No |
| Sensing Distance | 5 mm |
| PNP Output | No |
| NPN Output | Yes |
| Normally Open (NO) | Yes |
| Normally Closed (NC) | No |
| Connector | Cable |
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by AK1/AN-1A |
|---|---|
| Product name | Filter products by M18 5mm NPN NO 10-30VDC Proximity |
| Brand | Filter products by MD Microdetectors |
| Product type | Filter products by M18 cylindrical inductive proimity sensor |
| Product series | Filter products by AK series |
Electrical ratings
| Supply voltage | Filter products by 10 – 30 VDC |
|---|---|
| Supply protection | Filter products by Short circuit and polarity reversal protection |
Contacts, control & I/O
| Normally open (NO) | Filter products by Yes |
|---|---|
| Normally closed (NC) | Filter products by No |
| Pnp output | Filter products by No |
| Npn output | Filter products by Yes |
| Led indication | Filter products by Yellow LED output state |
Sensing & measurement
| Sensing distance | Filter products by 5 mm |
|---|
Mechanical & mounting
| Flush mount | Filter products by Yes |
|---|---|
| Non flush mount | Filter products by No |
| Housing material | Filter products by Nickel-plated brass |
Wiring & termination
| Connector | Filter products by Cable |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP67 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
