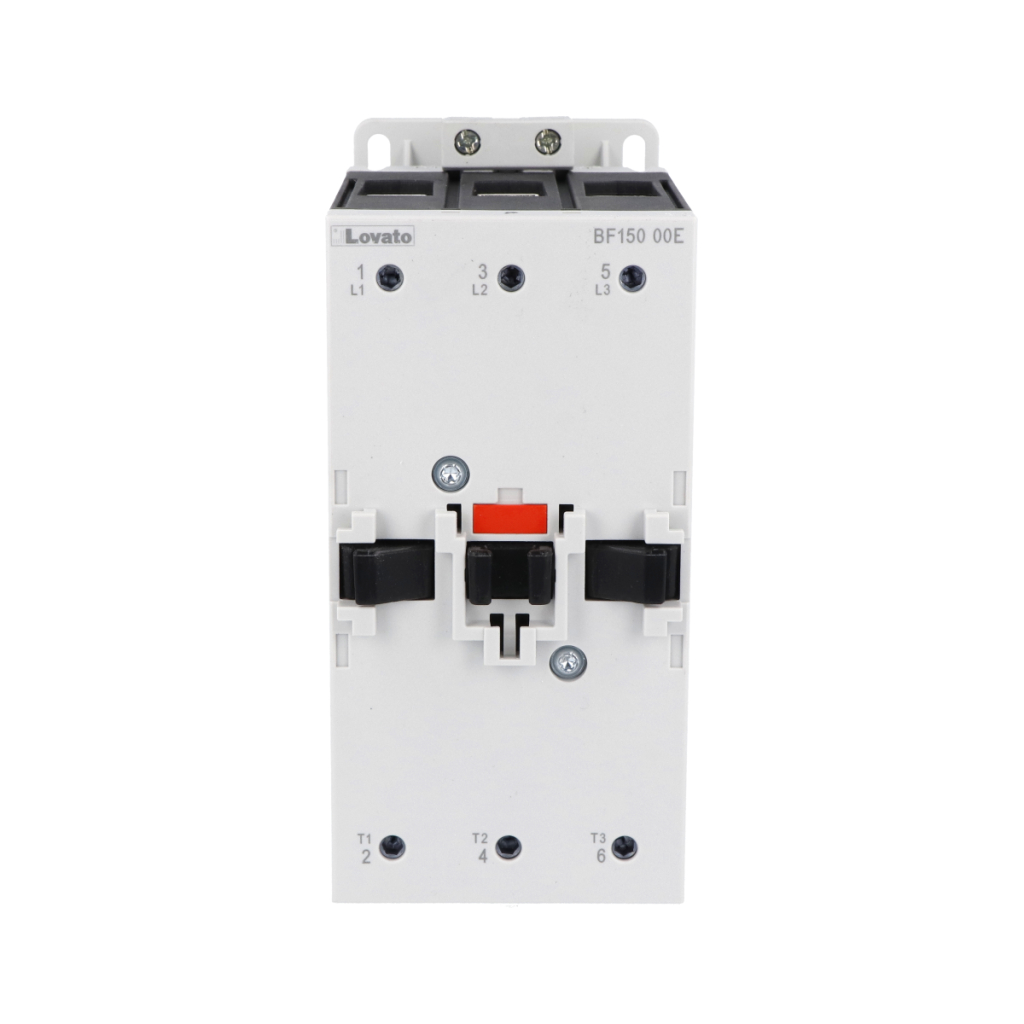

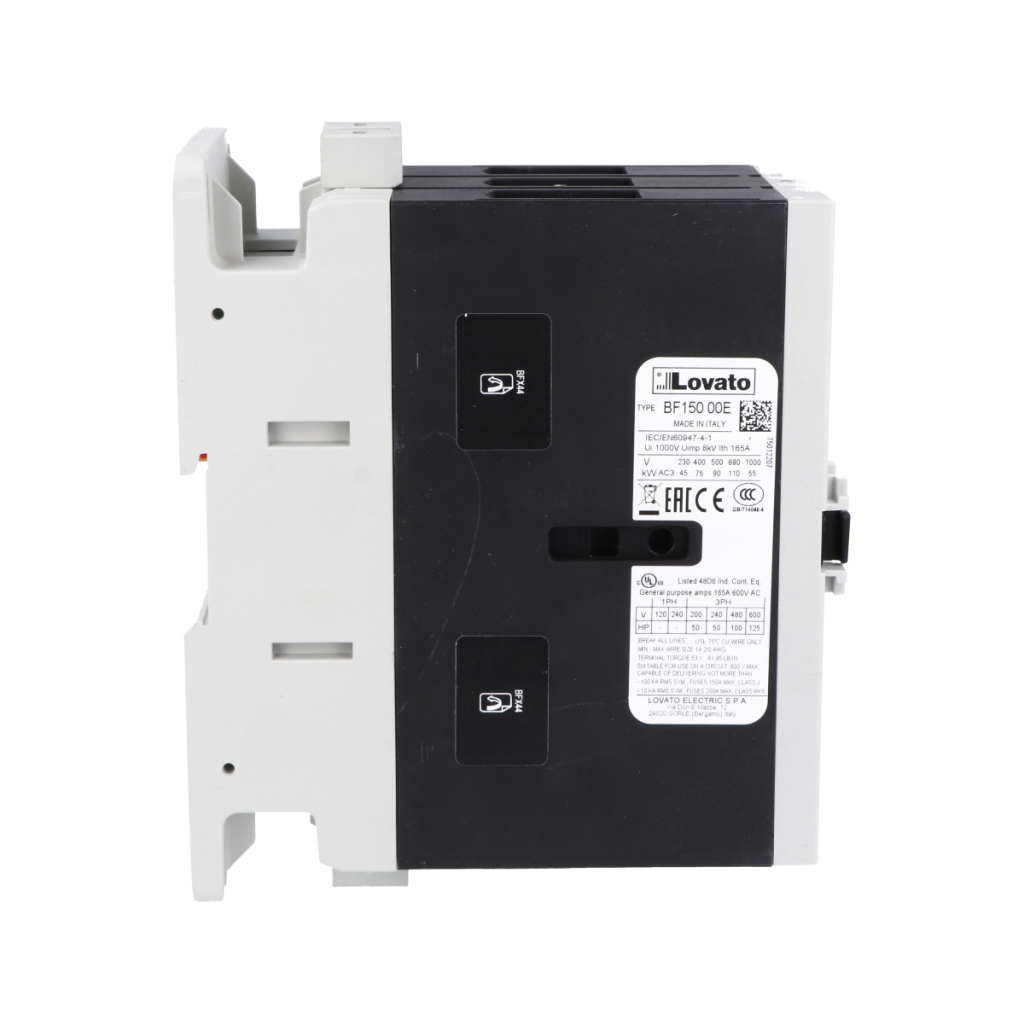

BF15000E024 – 150A 75KW Contactor 24VAC/DC | Lovato Electric | EM

BF15000E024 — 150A 75KW Contactor 24VAC/DC by Lovato Electric.

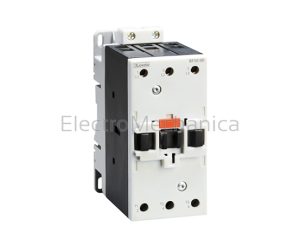

BF series Three-pole contactors (Ui 690V) The Lovato contactor range offers only the finest in quality and reliability. The contactors are geared for easy installation with a snap-on mounting feature. Available in both AC and DC, Lovato contactors offers a solution for any installation. Key Features: Coils with wide operating range 55mm wide contactors up to 95A in AC3 (45kW) with a width of just 55mm 45mm wide contactors- merely 45mm wide: exceptional benefit for electric panel dimensions 4-terminal coil connecting cables can be coupled to the coil both on the line and load ends of the contactor Built-in surge suppressor BF series contactors up to 95A AC3 with voltages in DC or AC/DC already have a built-in surge suppressor Low-consumption coils. The BF…L contactors feature a 2.4W low consumption. This characteristic widely allows their direct control by PLC outputs Electronic coil. Contactors from 40 to 95A AC3 can be equipped with AC/DC electronic coil with wide operating range. Example: single 100 to 250V AC/DC coil.

Key specifications: rated current 165 A; AC-3 rated current 150 A; AC-3 motor rating 75 kW at 400 V; 3P; control voltage 24 V DC; 3 NO contacts.

Ordering information

• Order code: BF15000E024
• Manufacturer: Lovato Electric
• Supplied: each
• Datasheet: manufacturer datasheet for BF15000E024

Ordering options in this range

Same product, different coil / control voltage:

• BF15000E110 — 110 V DC
• BF15000E230 — 230 V DC
