| Rated current (Iu) | Filter products by 56 A |
|---|---|
| Rated current AC-1 (Ie) | Filter products by 56 A |
| Number of poles | Filter products by 4P |
| Coil voltage (Uc) | Filter products by 48VAC |
| Contact configuration | Filter products by 2 NO/2 NC |
Lovato ElectricContactors & AccessoriesMotor Control & Motors

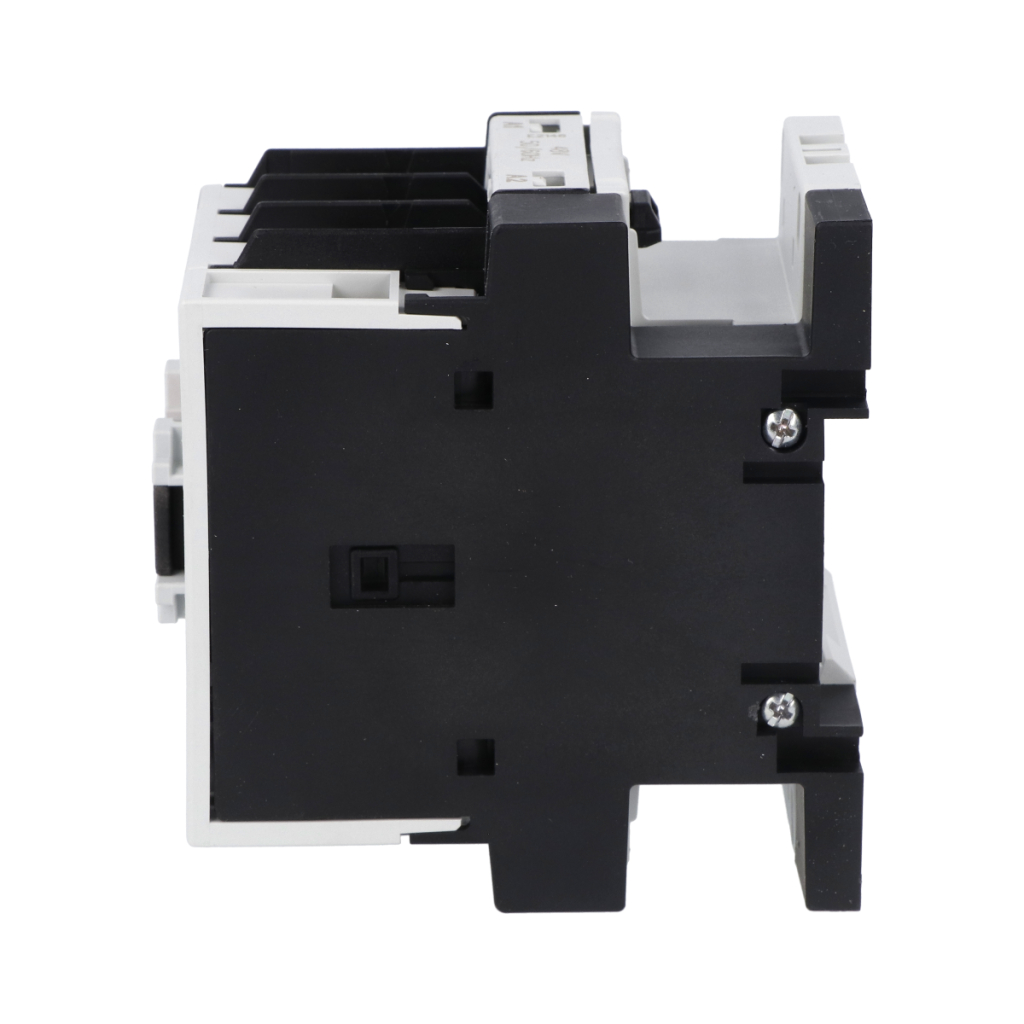

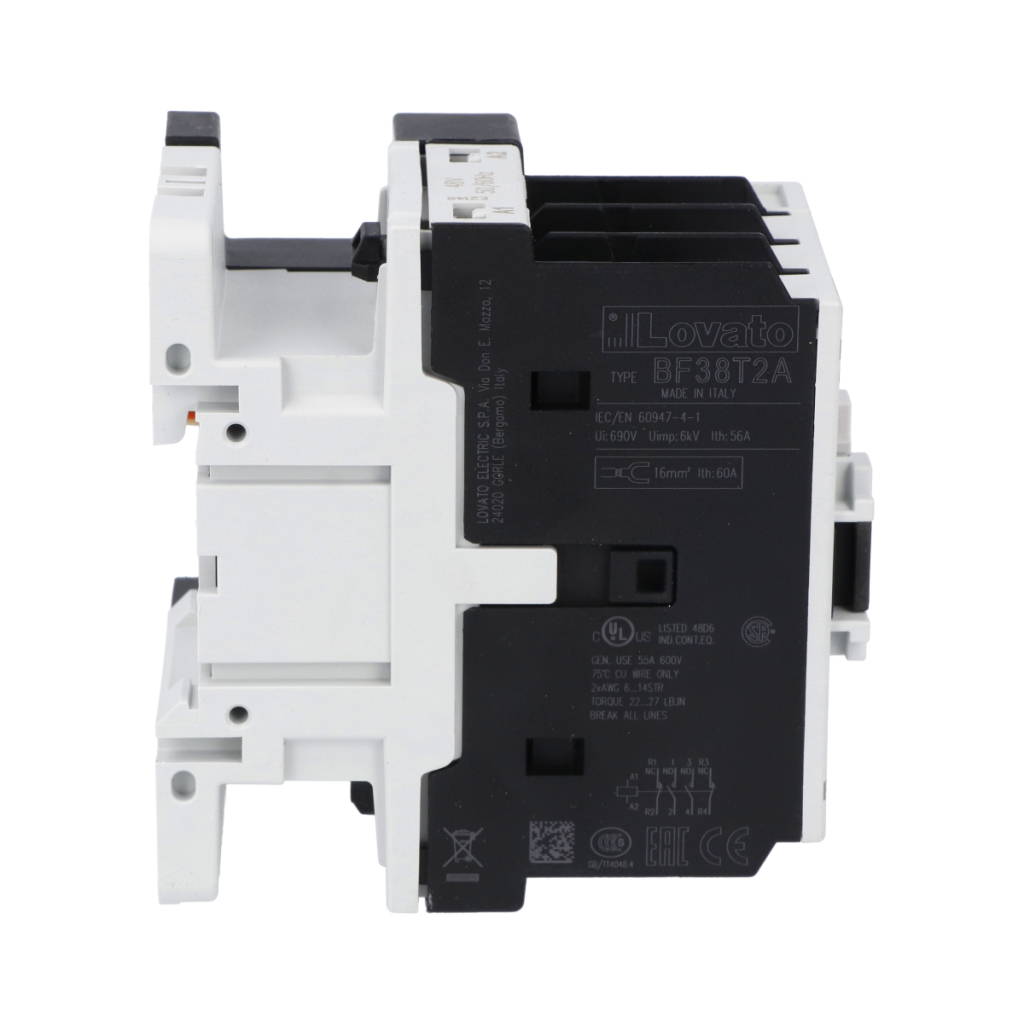

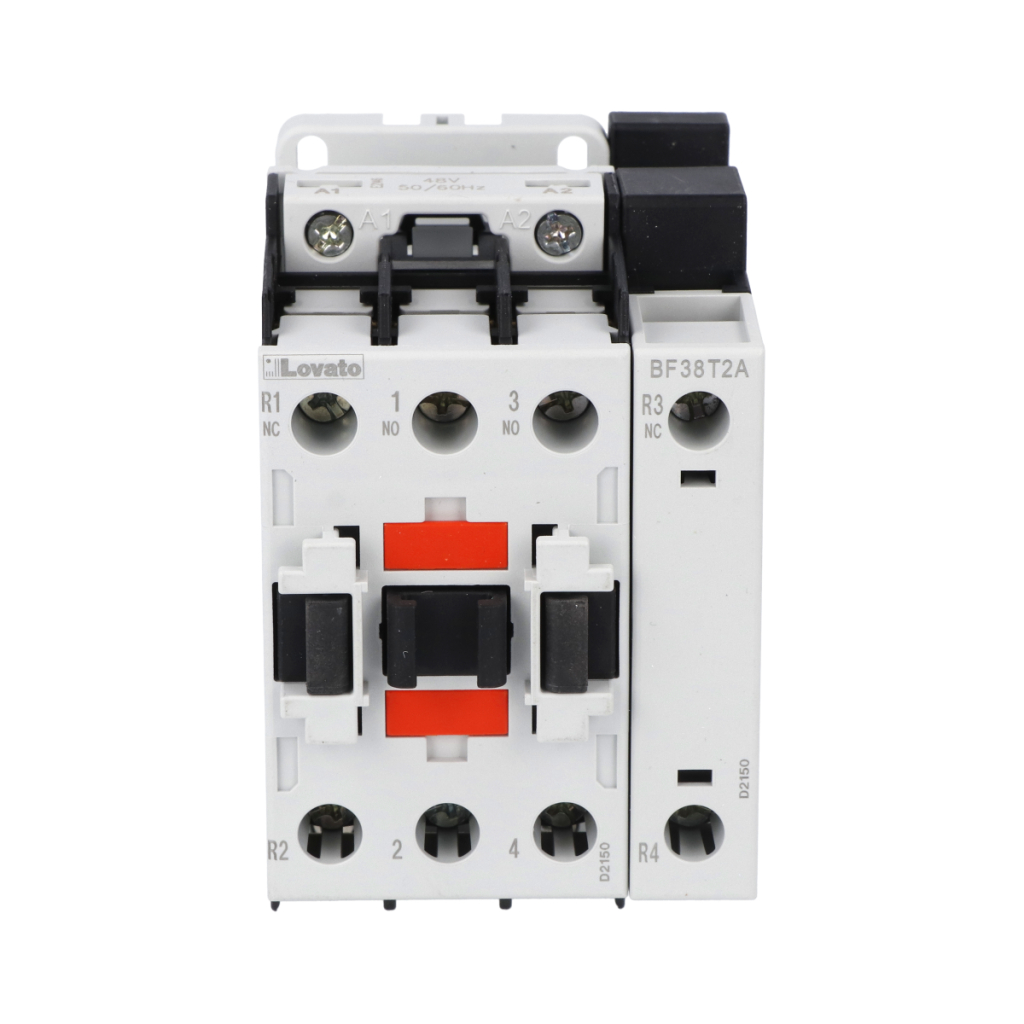

BF38T2A048 – 56A 4P Contactor 2NO/2NC 48VAC | Lovato Electric
Order code
List R7 003,50 Your price R4 902,45
Per unit · volume pricing available on request
excl. VAT R5 637,82 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
56A 4P Contactor 2NO/2NC 48VAC — Lovato Electric order code BF38T2A048. Rated current 56 A; AC-1 rating 30 kW at 400 V; 4P; control voltage 48 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Download instructions (opens in a new tab)Download certifications (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
BF38T2A048 — 56A 4P Contactor 2NO/2NC 48VAC by Lovato Electric. Listed under Contactors & Accessories on the Lovato Electric catalogue at RMS-EM.Africa.
About BF38T2A048
BF series – Four-pole contactors (Ui 690V) The Lovato contactor range offers only the finest in quality and reliability. The contactors are geared for easy installation with a snap-on mounting feature. Available in both AC and DC, Lovato contactors offers a solution for any installation. Key Features: Coils with wide operating range 55mm wide contactors up to 80a in AC3 (45kW) with a width of just 55mm 45mm wide contactors- merely 45mm wide: exceptional benefit for electric panel dimensions 4-terminal coil connecting cables can be coupled to the coil both on the line and load ends of the contactor Built-in surge suppressor BF series contactors up to 80A AC3 with voltages in DC or AC/DC already have a built-in surge suppressor Low-consumption coils. The BF…L contactors feature a 2.4W low consumption. This characteristic widely allows their direct control by PLC outputs Electronic coil. Contactors from 40 to 80A AC3 can be equipped with AC/DC electronic coil with wide operating range. Example: single 100 to 250V AC/DC coil.
BF38T2A048 key specifications
Key specifications: rated current 56 A; AC-1 rating 30 kW at 400 V; 4P; control voltage 48 V; 2 NO/2 NC contacts.
Ordering information for BF38T2A048
- Order code:
BF38T2A048 - Manufacturer: Lovato Electric
- Supplied: each
- Datasheet: manufacturer datasheet for BF38T2A048
Ordering options in this range
Same product, different coil / control voltage:
BF38T2A110— 110 VBF38T2A230— 230 VBF38T2A400— 400 V
BF38T2A048 — frequently asked questions
What is the rated current of BF38T2A048?
BF38T2A048 is rated 56 A.
What coil or control voltage does BF38T2A048 use?
BF38T2A048 is supplied with a 48 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does BF38T2A048 have?
BF38T2A048 is a 4P device.
Where is the datasheet for BF38T2A048?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Lovato Electric publishes them.
Is BF38T2A048 a genuine Lovato Electric product?
Yes. BF38T2A048 is supplied through the manufacturer’s authorised channel with the standard Lovato Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | BF38T2A048 |
|---|---|
| Product name | Filter products by 56A 4P Contactor 2NO/2NC 48VAC |
| Brand | Filter products by Lovato Electric |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|---|
| Rated current (Iu) | Filter products by 56 A |
| Control circuit voltage (Us) | Filter products by 48 V |
Power & coil
| Coil voltage (Uc) | Filter products by 48VAC |
|---|---|
| Power ac1 230v | Filter products by 17 |
| Rating AC-1 at 400 V | Filter products by 30 kW |
Contacts, control & I/O
| Contact configuration | Filter products by 2 NO/2 NC |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Rated power kw | Filter products by 45 kW |
|---|
