Lovato ElectricContactors & AccessoriesMotor Control & Motors

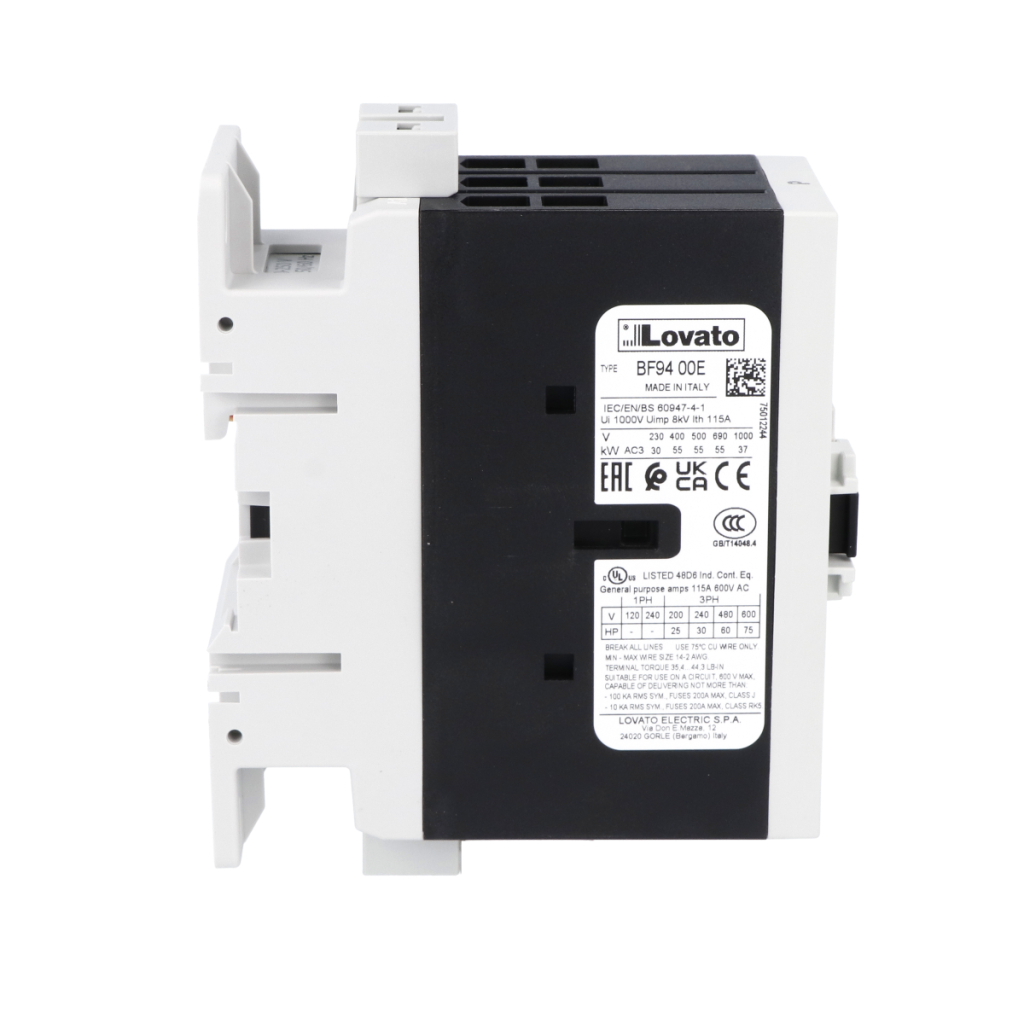

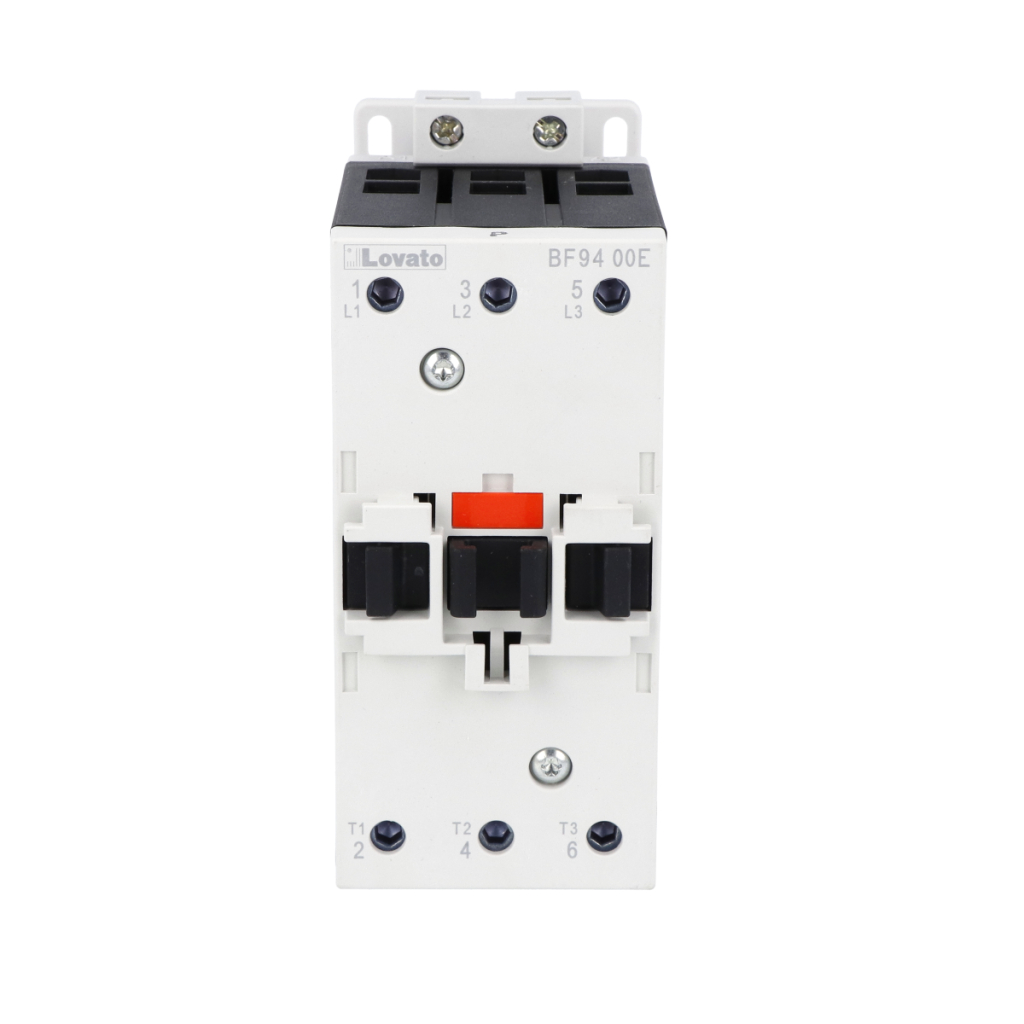

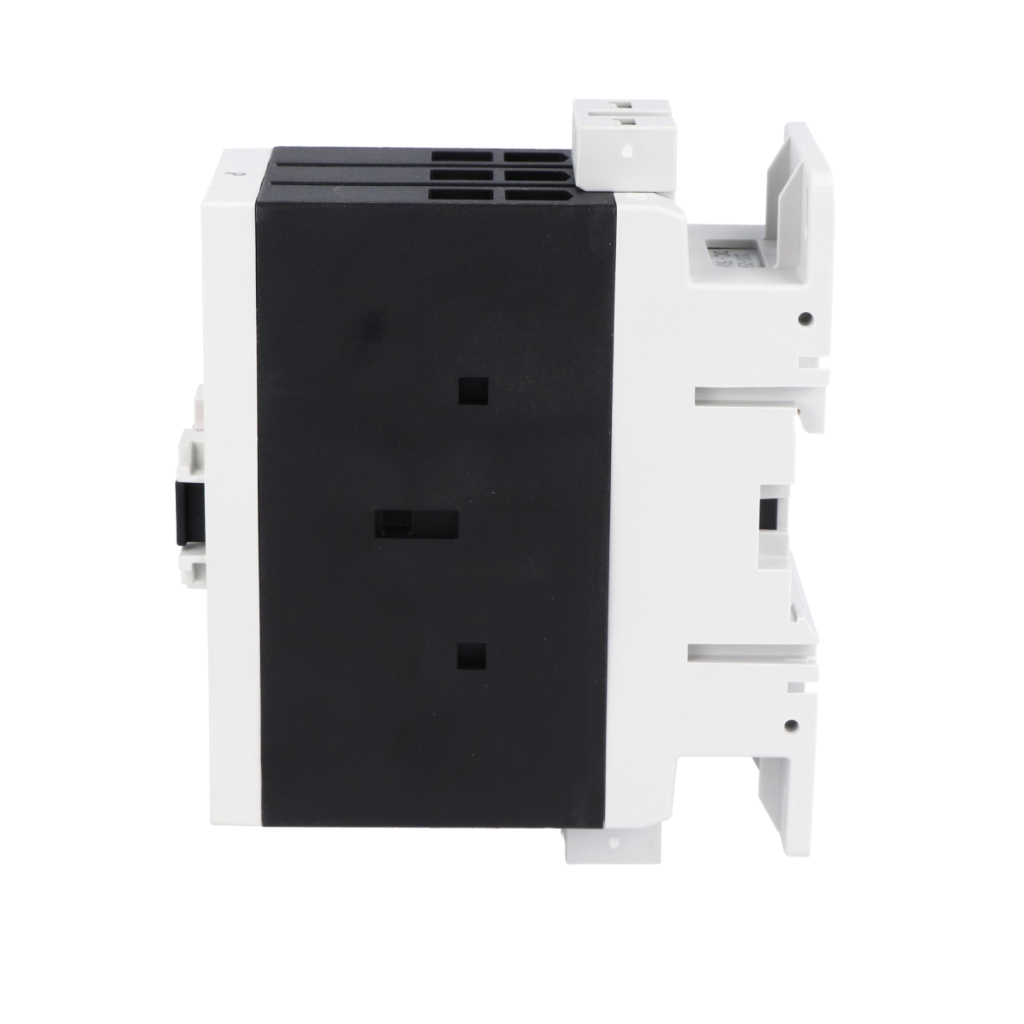

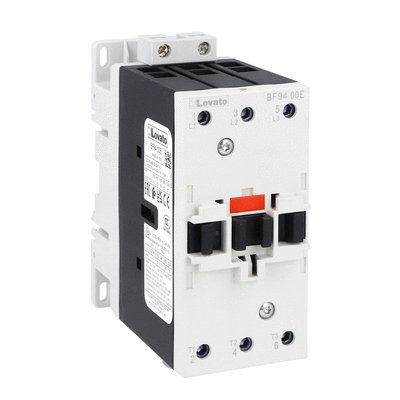

BF9400E230 – 95A 55KW Contactor 230VAC/DC | Lovato Electric
Order code
List R6 783,00 Your price R4 748,10
Per unit · volume pricing available on request
excl. VAT R5 460,32 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
95A 55KW Contactor 230VAC/DC — Lovato Electric order code BF9400E230. Rated current 115 A; AC-3 rated current 95 A; AC-3 motor rating 55 kW at 400 V; 3P.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Download instructions (opens in a new tab)Download certifications (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
BF9400E230 — 95A 55KW Contactor 230VAC/DC by Lovato Electric. Listed under Contactors & Accessories on the Lovato Electric catalogue at RMS-EM.Africa.
About BF9400E230
BF series Three-pole contactors (Ui 690V) The Lovato contactor range offers only the finest in quality and reliability. The contactors are geared for easy installation with a snap-on mounting feature. Available in both AC and DC, Lovato contactors offers a solution for any installation. Key Features: Coils with wide operating range 55mm wide contactors up to 95A in AC3 (45kW) with a width of just 55mm 45mm wide contactors- merely 45mm wide: exceptional benefit for electric panel dimensions 4-terminal coil connecting cables can be coupled to the coil both on the line and load ends of the contactor Built-in surge suppressor BF series contactors up to 95A AC3 with voltages in DC or AC/DC already have a built-in surge suppressor Low-consumption coils. The BF…L contactors feature a 2.4W low consumption. This characteristic widely allows their direct control by PLC outputs Electronic coil. Contactors from 40 to 95A AC3 can be equipped with AC/DC electronic coil with wide operating range. Example: single 100 to 250V AC/DC coil.
BF9400E230 key specifications
Key specifications: rated current 115 A; AC-3 rated current 95 A; AC-3 motor rating 55 kW at 400 V; 3P; control voltage 230 V DC; 3 NO contacts.
Ordering information for BF9400E230
- Order code:
BF9400E230 - Manufacturer: Lovato Electric
- Supplied: each
- Datasheet: manufacturer datasheet for BF9400E230
Ordering options in this range
Same product, different coil / control voltage:
BF9400E110— 110 V DCBF9500E024— 24 V DC
BF9400E230 — frequently asked questions
What is the rated current of BF9400E230?
BF9400E230 is rated 115 A.
What motor rating can BF9400E230 switch?
BF9400E230 is rated for 55 kW at 400 V (AC-3, three-phase).
What coil or control voltage does BF9400E230 use?
BF9400E230 is supplied with a 230 V DC coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does BF9400E230 have?
BF9400E230 is a 3P device.
Where is the datasheet for BF9400E230?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Lovato Electric publishes them.
Is BF9400E230 a genuine Lovato Electric product?
Yes. BF9400E230 is supplied through the manufacturer’s authorised channel with the standard Lovato Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | BF9400E230 |
|---|---|
| Product name | Filter products by 95A 55KW Contactor 230VAC/DC |
| Brand | Filter products by Lovato Electric |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 115 A |
| Rated current AC-3 (Ie) | Filter products by 95 A |
| Control circuit voltage (Us) | Filter products by 230 V DC |
Power & coil
| Coil voltage (Uc) | Filter products by 230VAC/DC |
|---|---|
| Power rating | Filter products by 55 kW |
Contacts, control & I/O
| Contact configuration | Filter products by 3 NO |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Rated power kw | Filter products by 55 kW |
|---|
