BG0910A048 – 4KW 3P Mini Cont. 1NO 48VAC | Lovato Electric

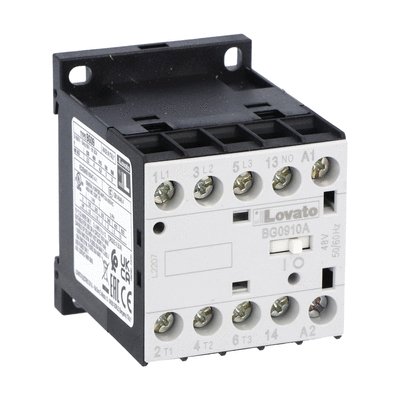

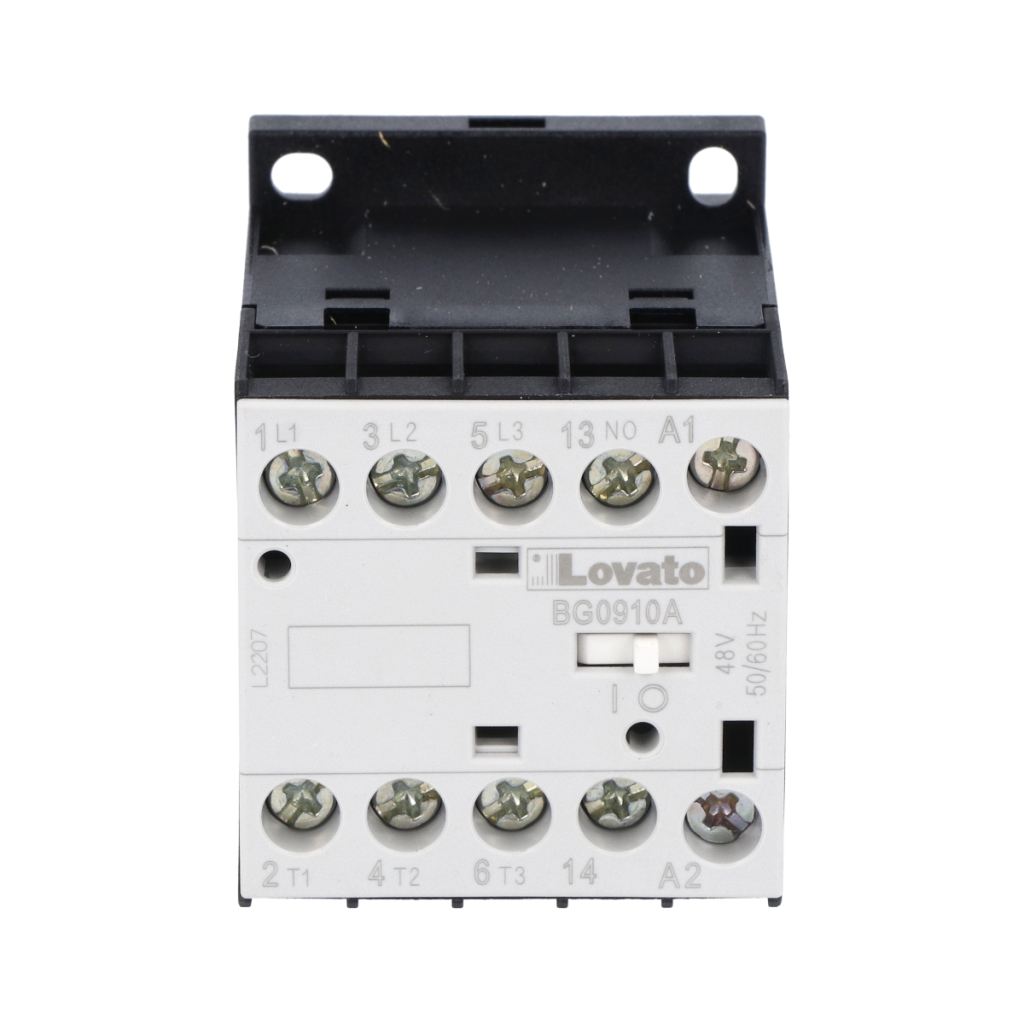

BG0910A048 — 4KW 3P Mini Cont. 1NO 48VAC, a 3-pole mini contactor by Lovato Electric. Listed under Contactors & Accessories on the Lovato Electric catalogue at RMS-EM.Africa.

About BG0910A048

BG series mini contactors The main feature of the BG mini contactor is the compact size so its main use is in applications where the electric circuit is compressed because of the available space,for instance on small machine tools, air conditioning, automatic doors or gates, lighting etc. Use in more complex industrial circuitry is also possible for small control loads. These mini contactors can be equipped with accessories or thermal overload relays as well as connected with motor protection circuit breakers. Key features Three-pole contactors (Ui 690V) AC and DC versions of same size Mechanical interlock only 5mm deep Quick connect – snap on accessory mounting Up to four auxiliary contacts can be mounted Highly conductive auxiliary contacts with four contact points Positive (force) guided contacts (mechanically-linked per.

BG0910A048 key specifications

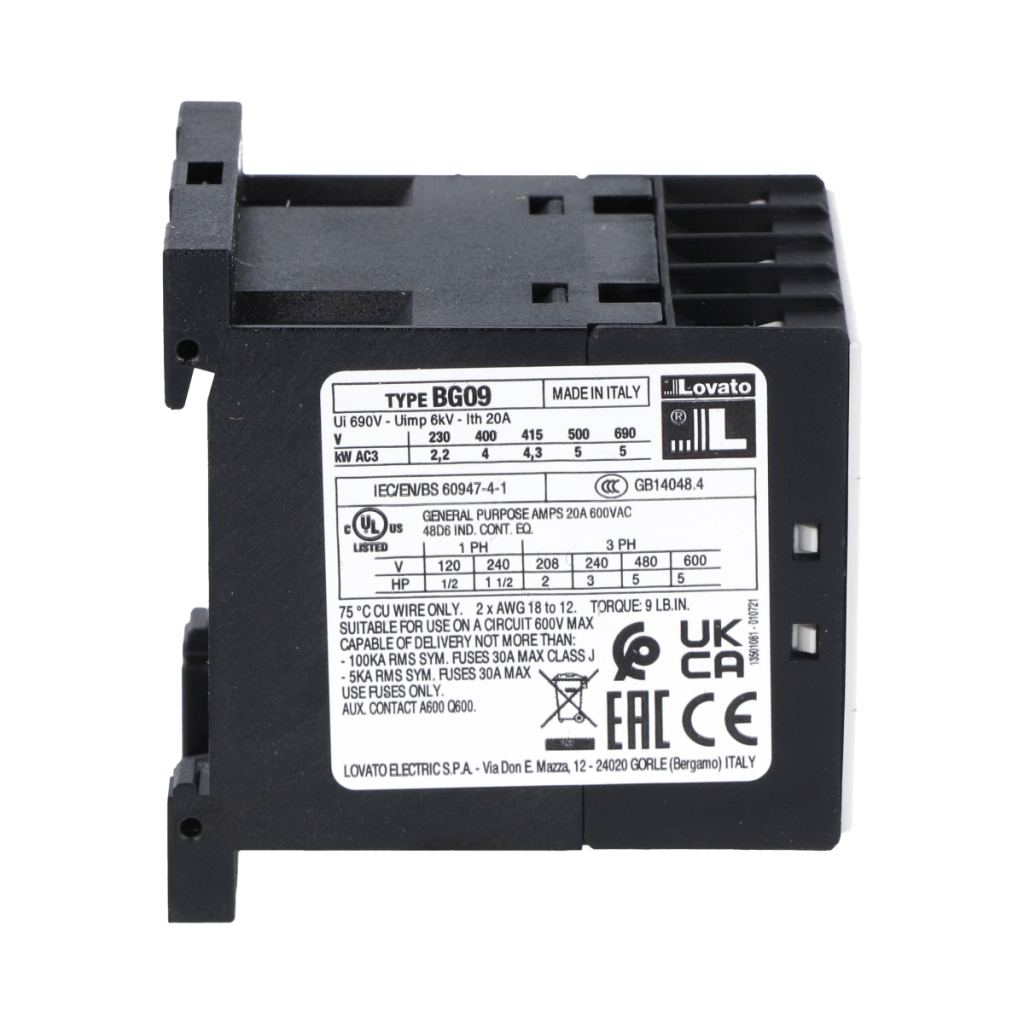

Key specifications: rated current 20 A; AC-3 rated current 9 A; AC-3 motor rating 4 kW at 400 V; 3P; control voltage 48 V; 3 NO contacts; auxiliary contacts 1 NO.

Ordering information for BG0910A048

• Order code: BG0910A048
• Manufacturer: Lovato Electric
• Supplied: each
• Datasheet: manufacturer datasheet for BG0910A048

How to read the order code

• BG — Lovato BG mini contactor
• 09 — AC-3 rating 9 A
• A048 — coil 48 V AC

Ordering options in this range

Same product, different coil / control voltage:

• BG0910A024 — 24 V
• BG0910A110 — 110 V
• BG0910A220 — 220 V
• BG0910A400 — 400 V
• BG0910D012 — 12 V
• BG0910D060 — 60 V

BG0910A048 — frequently asked questions

What is the rated current of BG0910A048?

BG0910A048 is rated 20 A.

What motor rating can BG0910A048 switch?

BG0910A048 is rated for 4 kW at 400 V (AC-3, three-phase).

What coil or control voltage does BG0910A048 use?

BG0910A048 is supplied with a 48 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

How many poles does BG0910A048 have?

BG0910A048 is a 3P device.

Where is the datasheet for BG0910A048?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Lovato Electric publishes them.

Is BG0910A048 a genuine Lovato Electric product?

Yes. BG0910A048 is supplied through the manufacturer’s authorised channel with the standard Lovato Electric warranty, and every order is confirmed against stock before payment.
