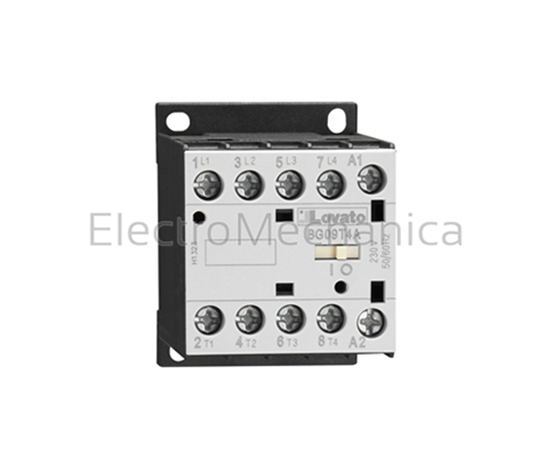

BG09T2D110 – 20A 4P Mini Cont. 2NO/2NC 110VDC | Lovato Electric | EM

BG09T2D110 — 20A 4P Mini Cont. 2NO/2NC 110VDC by Lovato Electric.

BG series mini contactors The main feature of the BG mini contactor is the compact size so its main use is in applications where the electric circuit is compressed because of the available space,for instance on small machine tools, air conditioning, automatic doors or gates, lighting etc. Use in more complex industrial circuitry is also possible for small control loads. These mini contactors can be equipped with accessories or thermal overload relays as well as connected with motor protection circuit breakers. Key features Four-pole mini-contactors AC and DC versions of same size Mechanical interlock only 5mm deep Quick connect – snap on accessory mounting Up to four auxiliary contacts can be mounted Highly conductive auxiliary contacts with four contact points Quick connect – snap on accessory mounting Up to four auxiliary contacts can be mounted Highly conductive auxiliary contacts with four contact points.

Key specifications: rated current 20 A; AC-1 rating 14 kW at 400 V; 4P; control voltage 110 V; 2 NO/2 NC contacts.

Ordering information

• Order code: BG09T2D110
• Manufacturer: Lovato Electric
• Supplied: each
• Datasheet: manufacturer datasheet for BG09T2D110

Ordering options in this range

Same product, different coil / control voltage:

• BG09T2A024 — 24 V
• BG09T2A110 — 110 V
• BG09T2A220 — 220 V
• BG09T2D012 — 12 V
