ElectroLevel control relaysTimers & Control Relays
DLL4230A – Liquid Level Cont. 4 Probe 230VAC | Electro
Order code
List R1 491,00 Your price R1 043,70
Per unit · volume pricing available on request
excl. VAT R1 200,26 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Liquid Level Cont. 4 Probe 230VAC — Electro order code DLL4230A. Rated current 10 A; rated voltage 250 V; supply 230 V; 10A SPDT contacts.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
DLL4230A — Liquid Level Cont. 4 Probe 230VAC, a liquid level controllers by Electro. Listed under Level control relays on the Electro catalogue at RMS-EM.Africa.
About DLL4230A

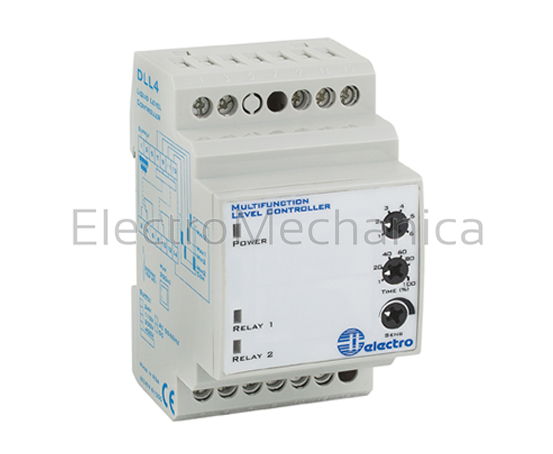

Liquid Level Timer Level control relay for conductive liquids selectable for filling and emptying applications with adjustable sensitivity. The unit can be wired for three wire application to control levels between High and Low probe or two wire applications for alarm indication. Filling or emptying can be selected via front slide switch. Features: 10A SPDT output relay Microprocessor controlled Low voltage AC probe signal Front face adjustable sensitivity Modular 35.5mm DIN rail mountable Front face selection Filling / Emptying LED indication for relay and power supply.
DLL4230A key specifications
Key specifications: rated current 10 A; rated voltage 250 V; supply 230 V; 10A SPDT contacts.
Ordering information for DLL4230A
- Order code:
DLL4230A - Manufacturer: Electro
- Supplied: each
- Datasheet: manufacturer datasheet for DLL4230A
DLL4230A — frequently asked questions
What is the rated current of DLL4230A?
DLL4230A is rated 10 A.
Where is the datasheet for DLL4230A?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Electro publishes them.
Is DLL4230A a genuine Electro product?
Yes. DLL4230A is supplied through the manufacturer’s authorised channel with the standard Electro warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | DLL4230A |
|---|---|
| Product name | Filter products by Liquid Level Cont. 4 Probe 230VAC |
| Brand | Filter products by Electro |
| Product type | Filter products by Liquid level controllers |
Electrical ratings
| Rated current (Iu) | Filter products by 10 A |
|---|---|
| Rated voltage (Ue) | Filter products by 250 V |
| Supply voltage | Filter products by 230 V |
| Mechanical life | Filter products by 10×106 cycles |
Contacts, control & I/O
| Contact | Filter products by 10A SPDT |
|---|---|
| Function | Emptying/filling with alarm, emptying/filling with pump priority, container filling/well draining with alarm, electrode test |
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| Functions | Filter products by Emptying or filling |
|---|
