| Rated current (Iu) | Filter products by 25 A |
|---|---|
| Rated operational voltage | Filter products by 230 V |
| Number of poles | Filter products by 2P |
| Coil voltage (Uc) | Filter products by 230 V AC |
| Supply voltage | Filter products by 230 V |
| Contact configuration | Filter products by 1 NO + 1 NC |
HagerModular contactors & RelaysTimers & Control Relays

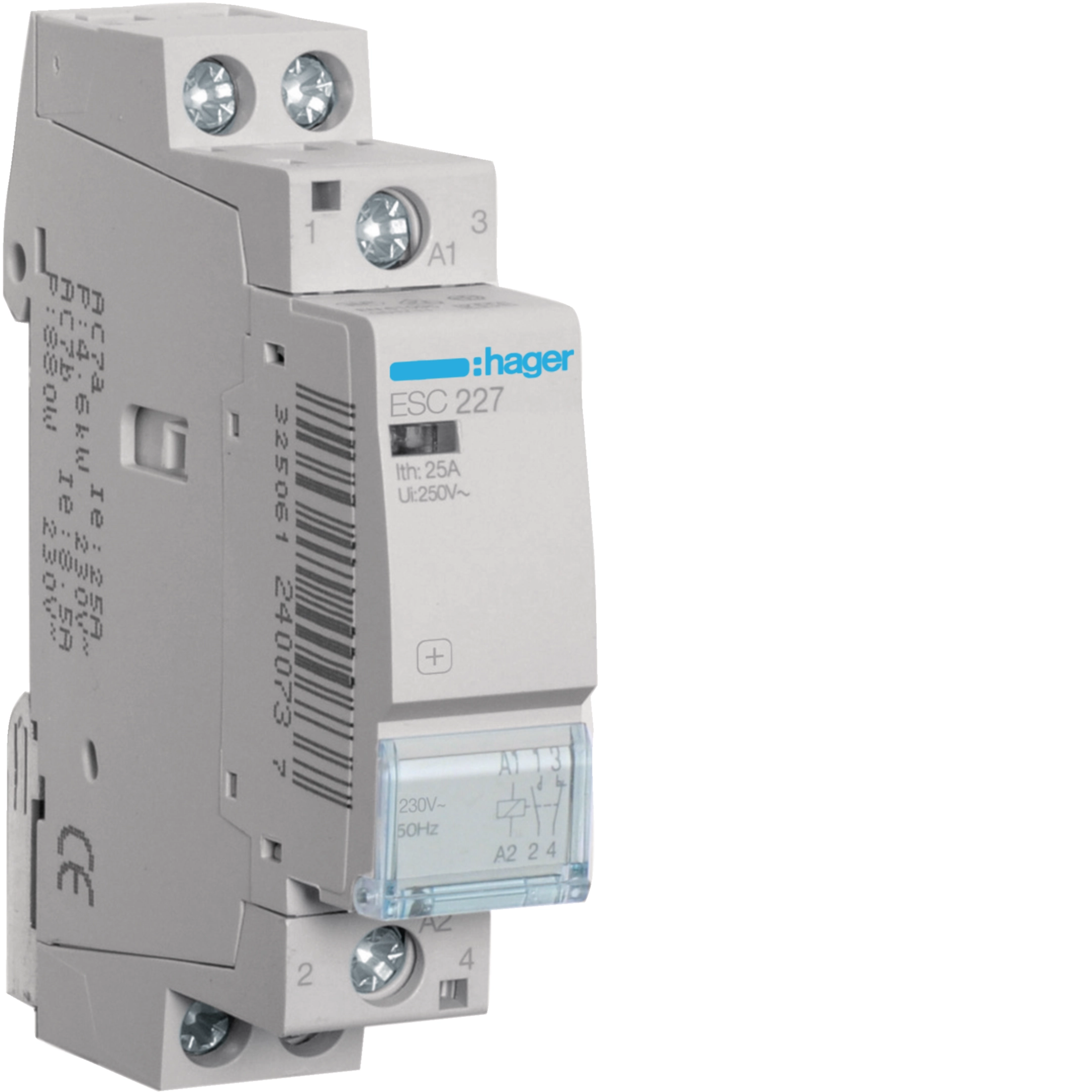

ESC227 – Contactor 25A 1NO+1NC 230VAC | Hager
Order code
List R577,50 Your price R404,25
Per unit · volume pricing available on request
excl. VAT R464,89 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Contactor 25A 1NO+1NC 230VAC — Hager order code ESC227. Rated current 25 A; AC-1 rating 25 kW at 400 V; 2P; rated operational voltage 230 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)
Select a variant in this series
Poles2P2 options
- 2P
- 4P
Contacts1 NO + 1 NC5 options
- 1 NO + 1 NC
- 2 NC
- 2 NO
- 2 NO + 2 NC
- 4 NO
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
ESC227 — Contactor 25A 1NO+1NC 230VAC by Hager. Listed under Modular contactors & Relays on the Hager catalogue at RMS-EM.Africa.
About ESC227
Modular contactors Features: Four ratings: 16A, 25A, 40A, 63A Modular DIN rail mounting (same cut-out as MCBs) One and two module contactors feature economy low consumption, low heat dissipation coils.
ESC227 key specifications
Key specifications: rated current 25 A; AC-1 rating 25 kW at 400 V; 2P; rated operational voltage 230 V; 230 V AC coil; 50 Hz; 1 NO + 1 NC contacts; operating temperature −10 … +50 °C.
Ordering information for ESC227
- Order code:
ESC227 - Manufacturer: Hager
- Supplied: each
- Datasheet: manufacturer datasheet for ESC227
ESC227 — frequently asked questions
What is the rated current of ESC227?
ESC227 is rated 25 A.
What coil or control voltage does ESC227 use?
ESC227 is supplied with a 230 V AC coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does ESC227 have?
ESC227 is a 2P device.
Where is the datasheet for ESC227?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Hager publishes them.
Is ESC227 a genuine Hager product?
Yes. ESC227 is supplied through the manufacturer’s authorised channel with the standard Hager warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | ESC227 |
|---|---|
| Product name | Filter products by Contactor 25A 1NO+1NC 230VAC |
| Brand | Filter products by Hager |
| Product type | Filter products by Modular standard contactor |
Electrical ratings
| Number of poles | Filter products by 2P |
|---|---|
| Number of modules | Filter products by 1 |
| Rated current (Iu) | Filter products by 25 A |
| Rated operational voltage | Filter products by 230 V |
| Supply voltage | Filter products by 230 V |
| Rated frequency | Filter products by 50 Hz |
Power & coil
| Coil voltage (Uc) | Filter products by 230 V AC |
|---|---|
| Rated power ac1 | Filter products by 25A |
| Rating AC-1 at 400 V | Filter products by 25 kW |
Contacts, control & I/O
| Contact configuration | Filter products by 1 NO + 1 NC |
|---|
Wiring & termination
| Cross section flexible cable | Filter products by 1 / 6mm² |
|---|---|
| Cross section rigid cable | Filter products by 1 / 10mm² |
Environment & protection
| Operating temperature | Filter products by −10 … +50 °C |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
