ESL463S – 63A 4NO 12VAC/DC LOW Noise Cont. | Hager
Order code
List R1 900,50 Your price R1 330,35
Per unit · volume pricing available on request
excl. VAT R1 529,90 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
63A 4NO 12VAC/DC LOW Noise Cont. — Hager order code ESL463S. Rated current 63 A; AC-3 motor rating 10 kW at 400 V; AC-1 rating 63 kW at 400 V; 4P.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)
Select a variant in this series
Coil voltage12 V AC/DC2 options
- 12 V AC/DC
- 24 V AC/DC
Supply voltage12 V2 options
- 12 V
- 24 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

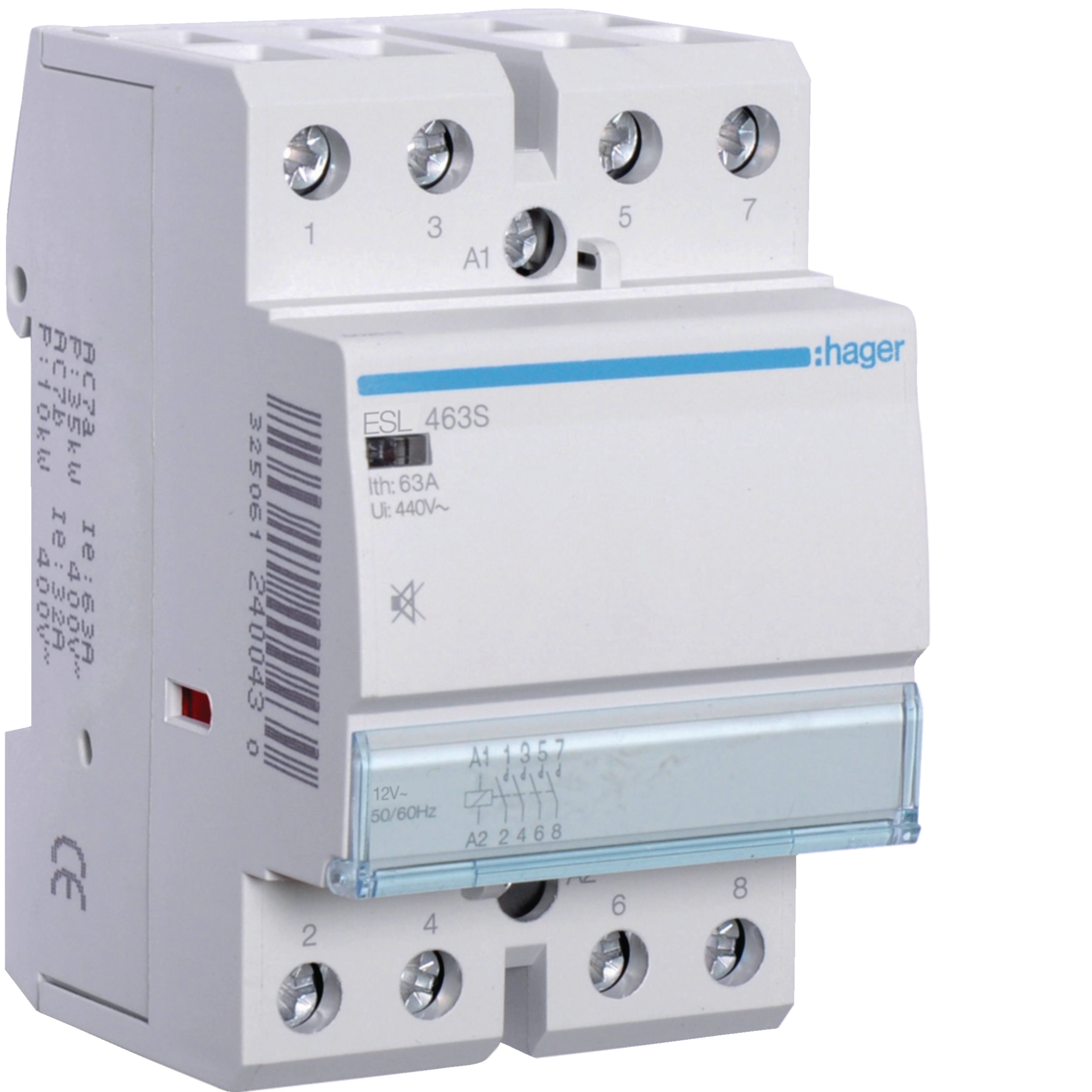

ESL463S — 63A 4NO 12VAC/DC LOW Noise Cont., a low noise modular standard contactor by Hager. Listed under Modular contactors & Relays on the Hager catalogue at RMS-EM.Africa.
About ESL463S
Modular contactors with low noise coil Features: No humming while energised / low switching noise Modular DIN rail mounting (same cut-out as MCBs).
ESL463S key specifications
Key specifications: rated current 63 A; AC-3 motor rating 10 kW at 400 V; AC-1 rating 63 kW at 400 V; 4P; rated operational voltage 400 V; 12 V AC/DC coil; supply 12 V; 50 Hz.
Ordering information for ESL463S
- Order code:
ESL463S - Manufacturer: Hager
- Supplied: each
- Datasheet: manufacturer datasheet for ESL463S
Ordering options in this range
Same product, different coil / control voltage:
ESD463S— 24 V AC/DC
ESL463S — frequently asked questions
What is the rated current of ESL463S?
ESL463S is rated 63 A.
What motor rating can ESL463S switch?
ESL463S is rated for 10 kW at 400 V (AC-3, three-phase).
What coil or control voltage does ESL463S use?
ESL463S is supplied with a 12 V AC/DC coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does ESL463S have?
ESL463S is a 4P device.
Where is the datasheet for ESL463S?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Hager publishes them.
Is ESL463S a genuine Hager product?
Yes. ESL463S is supplied through the manufacturer’s authorised channel with the standard Hager warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | ESL463S |
|---|---|
| Product name | Filter products by 63A 4NO 12VAC/DC LOW Noise Cont. |
| Brand | Filter products by Hager |
| Product type | Filter products by Low noise modular standard contactor |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|---|
| Number of modules | Filter products by 3 |
| Rated current (Iu) | Filter products by 63 A |
| Rated operational voltage | Filter products by 400 V |
| Supply voltage | Filter products by 12 V |
| Rated frequency | Filter products by 50 Hz |
Power & coil
| Coil voltage (Uc) | Filter products by 12 V AC/DC |
|---|---|
| Rated power ac1 | Filter products by 63A |
| Rated power ac 3 400v | Filter products by 10kW |
| Rating AC-1 at 400 V | Filter products by 63 kW |
| Motor rating AC-3 at 400 V | Filter products by 10 kW |
Contacts, control & I/O
| Contact configuration | Filter products by 4 NO |
|---|
Wiring & termination
| Cross section flexible cable | Filter products by 4 / 16mm² |
|---|---|
| Cross section rigid cable | Filter products by 4 /25mm² |
Environment & protection
| Operating temperature | Filter products by −10 … +50 °C |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Rated power kw | Filter products by 10 kW |
|---|
