About FM109

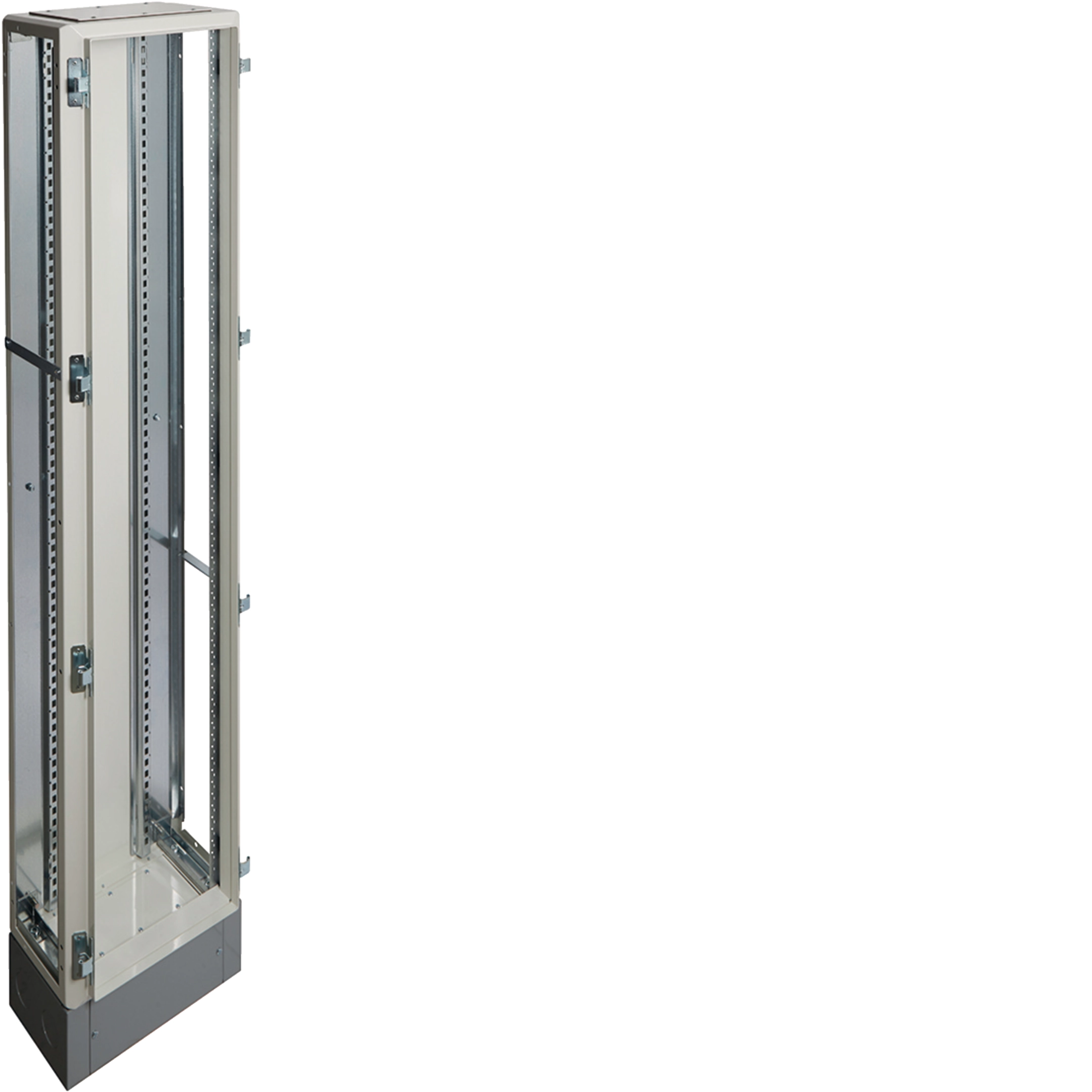

Quadro 5 floor standing distribution board system The Quadro5 system offers a sophisticated, aestheticallypleasing, protected (IP55 with door) enclosure which can be attached sidebyside to one another horizontally to satisfy most distribution board requirements. Quadro 5 accepts equipment kits for the assembly of devices and power distribution up to 630A. A complete floor-standing distribution board system is made up of the following: 1) Main structure with back plate (height) 1260 or 2010 mm / (width) 450 or 700 mm / (depth) 260 mm 2) Pair of side plates (left and right) 3) Door (plain or transparent) 4) Required equipment mounting kits (front covers and assembly rails) for MCBs (miniature circuit breakers) and modular devices for MCCBs (moulded case circuit breakers)/ Component: Enclosures height: 2010 mm (floor standing with back plate, removable top plate and plinth) Main frame with back plate, removable top plate and plinth with 2 wall securing lugs Internal equipment height 1800 mm accepts: 12 rows (150 mm high) or 9 rows (200 mm high) 24 way SERIES Quadro 5 series.

Ordering information for FM109

• Order code: FM109
• Manufacturer: Hager
• Supplied: each
• Datasheet: manufacturer datasheet for FM109

FM109 — frequently asked questions

Where is the datasheet for FM109?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Hager publishes them.

Is FM109 a genuine Hager product?

Yes. FM109 is supplied through the manufacturer’s authorised channel with the standard Hager warranty, and every order is confirmed against stock before payment.
