FM519 – Plain Door for FM109 | Hager
Order code
R5 218,50
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order

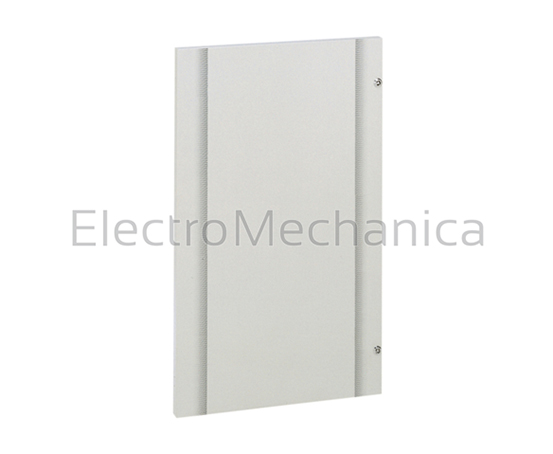

Plain Door for FM109 — Hager order code FM519.
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)Download instructions (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
FM519 — Plain Door for FM109 by Hager.
Quadro 5 floor standing distribution board system The Quadro5 system offers a sophisticated, aestheticallypleasing, protected (IP55 with door) enclosure which can be attached sidebyside to one another horizontally to satisfy most distribution board requirements. Quadro 5 accepts equipment kits for the assembly of devices and power distribution up to 630A. A complete floor-standing distribution board system is made up of the following: 1) Main structure with back plate (height) 1260 or 2010 mm / (width) 450 or 700 mm / (depth) 260 mm 2) Pair of side plates (left and right) 3) Door (plain or transparent) 4) Required equipment mounting kits (front covers and assembly rails) for MCBs (miniature circuit breakers) and modular devices for MCCBs (moulded case circuit breakers)/ Component: Enclosures height: 2010 mm (floor standing with back plate, removable top plate and plinth) Main frame with back plate, removable top plate and plinth with 2 wall securing lugs Internal equipment height 1800 mm accepts: 12 rows (150 mm high) or 9 rows (200 mm high) 24 way Doors for 2010 mm high enclosures (can be hinged from left or right) SERIES Quadro 5 series.
Ordering information
- Order code:
FM519 - Manufacturer: Hager
- Supplied: each
- Datasheet: manufacturer datasheet for FM519
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by FM519 |
|---|---|
| Product name | Filter products by Plain Door for FM109 |
| Brand | Filter products by Hager |
| Product series | Filter products by Quadro 5 |
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
