HagerEnclosures & Climate ControlSurface & Flush mount distribution boards
FU42DN – 96 WAY Flush MNT Vega-d D/BOARD | Hager
Order code
List R9 565,50 Your price R6 695,85
Per unit · volume pricing available on request
excl. VAT R7 700,23 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced

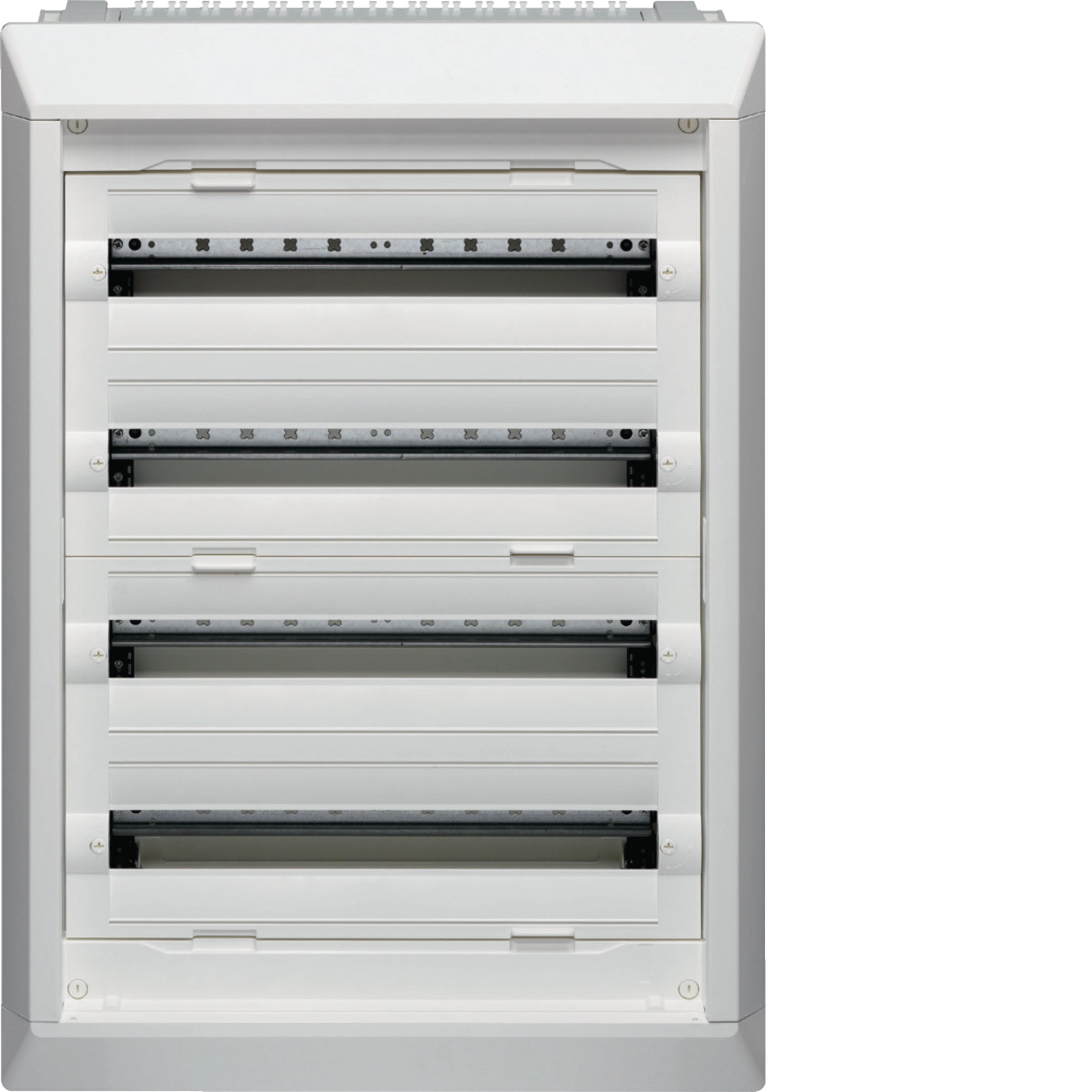

96 WAY Flush MNT Vega-d D/BOARD — Hager order code FU42DN. IP30; 837 × 550 × 150 mm; Light grey RAL 9010.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)Download instructions (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
FU42DN — 96 WAY Flush MNT Vega-d D/BOARD by Hager. Listed under Enclosures & Climate Control on the Hager catalogue at RMS-EM.Africa.
About FU42DN
Vega D series surface and flush mounting distribution boards (IP41 with doors fitted) Vega D enclosures are suitable for installations in residential and commercial buildings for supplies up to 250A. Delivered in a ready-to-mount configuration. All enclosures have 24 module rows. Features: Metallic surface mounting enclosure Integrated quick connect earth terminals Removable front frame for optimal access to internal installed devices Doors sheet metal (plain or with transparent window) to be ordered separately Flush-mounting boards Removable chassis with uprights accommodating modular devices Metallic (easily removable) finishing frame DN=40 / AN=72 mm depth Metallic flush mounting tray (depth 110 mm with insulated cable entries top and bottom) SERIES Vega D.
FU42DN key specifications
Key specifications: IP30; 837 × 550 × 150 mm; Light grey RAL 9010.
Ordering information for FU42DN
- Order code:
FU42DN - Manufacturer: Hager
- Supplied: each
- Datasheet: manufacturer datasheet for FU42DN
FU42DN — frequently asked questions
Where is the datasheet for FU42DN?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Hager publishes them.
Is FU42DN a genuine Hager product?
Yes. FU42DN is supplied through the manufacturer’s authorised channel with the standard Hager warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | FU42DN |
|---|---|
| Product name | Filter products by 96 WAY Flush MNT Vega-d D/BOARD |
| Brand | Filter products by Hager |
| Product type | Filter products by Surface mounting distribution board |
| Product series | Filter products by Vega D |
Contacts, control & I/O
| Number of ways | Filter products by 96 |
|---|---|
| No of modular ways | Filter products by 96 (4 x 24) |
Mechanical & mounting
| Dimensions | Filter products by 837 × 550 × 150 mm |
|---|---|
| Colour | Filter products by Light grey RAL 9010 |
Environment & protection
| Degree of protection (IP) | Filter products by IP30 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
