| Colour | Filter products by Red |
|---|
ElectroHeat shrinkTermination & Wiring
JDDBT050-R – 50mm Heat Shrnk Tube RED (25M) | Electro
Order code
List R1 795,50 Your price R1 256,85
Per unit · volume pricing available on request
excl. VAT R1 445,38 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
50mm Heat Shrnk Tube RED (25M) — Electro order code JDDBT050-R. Red.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)Download instructions (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
JDDBT050-R — 50mm Heat Shrnk Tube RED (25M), a heat shrink tubing by Electro. Listed under Heat shrink on the Electro catalogue at RMS-EM.Africa.
About JDDBT050-R

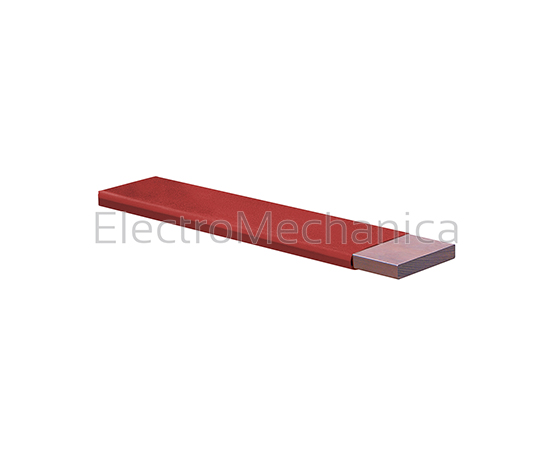

CYG-BT-1KV heat-shrinkable busbar insulation protection (medium wall) Track resistant polyolefin heat-shrinkable bus bar tubing used to protect and insulate rectangular, square or round bus bars – halogen free, low smoke. Busbar tubing calculation: add four sides and divide by 3.4+10% General features: Shrink ratio: 2.5:1 Material: Polyolefin Shrink temperature: 110°C Tensile strength: 10.4MPa Elongation at break: 500% Dielectric strength: 25kV/mm Operating temperature: -55°C – 125°C DESCRIPTION Heat shrink tubing COLOUR Red.
JDDBT050-R key specifications
Key specifications: Red.
Ordering information for JDDBT050-R
- Order code:
JDDBT050-R - Manufacturer: Electro
- Supplied: each
- Datasheet: manufacturer datasheet for JDDBT050-R
JDDBT050-R — frequently asked questions
Where is the datasheet for JDDBT050-R?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Electro publishes them.
Is JDDBT050-R a genuine Electro product?
Yes. JDDBT050-R is supplied through the manufacturer’s authorised channel with the standard Electro warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | JDDBT050-R |
|---|---|
| Product name | Filter products by 50mm Heat Shrnk Tube RED (25M) |
| Brand | Filter products by Electro |
| Product type | Filter products by Heat shrink tubing |
Mechanical & mounting
| Length | Filter products by 25m |
|---|---|
| Inside diameter | Filter products by 50 |
| Colour | Filter products by Red |
Wiring & termination
| Shrink ratio | Filter products by 2.5:1 |
|---|---|
| After recovery diameter | Filter products by 20 |
| After recovery wall thickness | Filter products by 1.10 mm |
| Roll length m | Filter products by 50 m |
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Diameter | Filter products by Ø50mm |
|---|
