LS-055-1 – Float SW Side MNT Hinged NPT1/2″ | Electro
Order code
R922,95
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Float SW Side MNT Hinged NPT1/2″ — Electro order code LS-055-1. Operating temperature −30 … +125 °C; Side mount mounting; Stainless steel.
Download certifications (opens in a new tab)
Accessories & add-ons 6
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

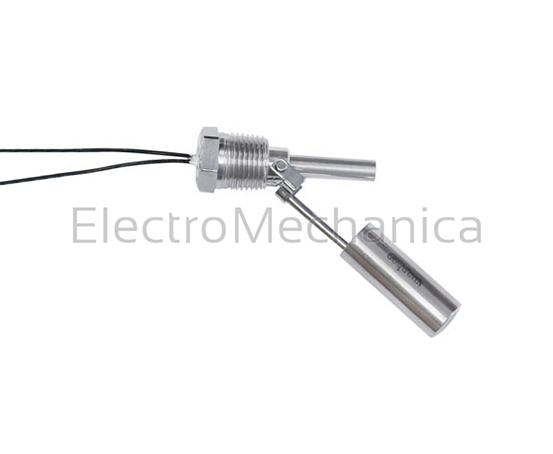

LS-055-1 — Float SW Side MNT Hinged NPT1/2", a hinged type horizontal mount float switch by Electro.
Float/flow switches (reed type) When the magnetic field (caused by an internal permanent magnet) is moved into the proximity of the sealed reed switch inside the stationary stem, the reed switch contacts close the electrical circuit. When the magnet is moved away from the reed switch the circuit is opened. The float switches are extremely compact, simple and easy to install and not effected by electrical interference and withstand chemicals. table DESCRIPTION Hinged type horizontal mount float switch.
Key specifications: operating temperature −30 … +125 °C; Side mount mounting; Stainless steel.
Ordering information
- Order code:
LS-055-1 - Manufacturer: Electro
- Supplied: each
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Switching current | Filter products by 70 VA |
|---|
Sensing & measurement
| Accuracy | Filter products by ± 2 mm in water |
|---|---|
| Pressure range | Filter products by 10 bar |
Mechanical & mounting
| Mounting | Filter products by Side mount |
|---|---|
| Material | Filter products by Stainless steel |
Wiring & termination
| Electrical connection | Filter products by 300 mm cable |
|---|
Environment & protection
| Operating temperature | Filter products by −30 … +125 °C |
|---|
Documents
| Certifications | Download certifications |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
