HagerMiniature circuit breakersPower Distribution & Protection

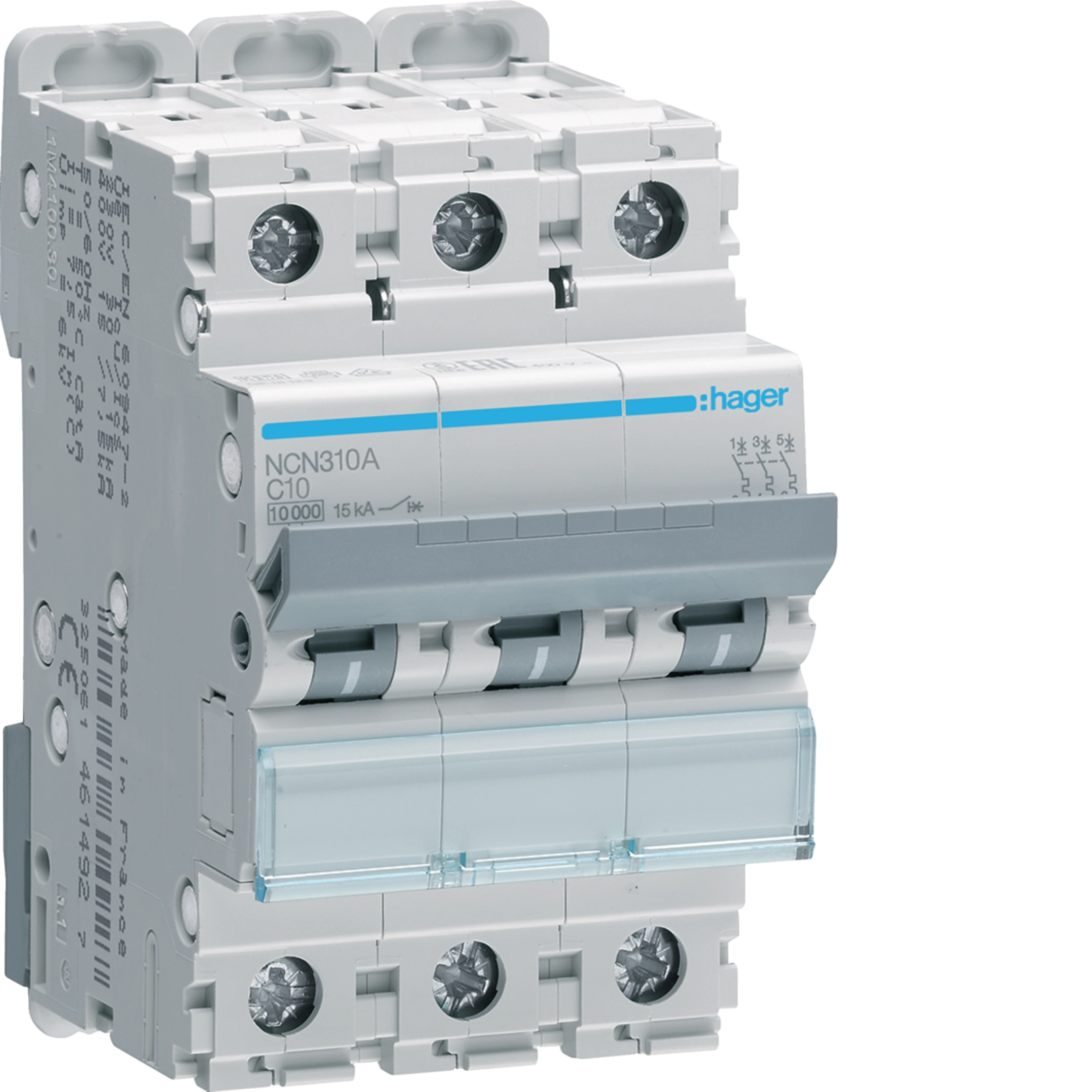

NCN310A – 10A 3P 15KA C-curve MCB | Hager
Order code
List R1 155,00 Your price R808,50
Per unit · volume pricing available on request
excl. VAT R929,78 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
10A 3P 15KA C-curve MCB — Hager order code NCN310A. Rated current 10 A; 3P; breaking capacity 15 kA; C curve.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Download certifications (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
NCN310A — 10A 3P 15KA C-curve MCB, a miniature circuit breaker by Hager. Listed under Miniature circuit breakers on the Hager catalogue at RMS-EM.Africa.
About NCN310A
Miniature circuit breakers (MCB's) For the protection and control of circuits against overload and short circuits. Suitable for commercial and industrial installations. Features: Compatible for DC voltage applications Field fittable accessories: Auxiliary/alarm contacts, Shunt trip device, Undervoltage release, Earth leakage.
NCN310A key specifications
Key specifications: rated current 10 A; 3P; breaking capacity 15 kA; C curve; rated operational voltage 240 / 400 V; 50 … 60 Hz; 3 modules wide; to 60947-2.
Ordering information for NCN310A
- Order code:
NCN310A - Manufacturer: Hager
- Supplied: each
- Datasheet: manufacturer datasheet for NCN310A
NCN310A — frequently asked questions
What is the rated current of NCN310A?
NCN310A is rated 10 A.
How many poles does NCN310A have?
NCN310A is a 3P device.
What is the breaking capacity of NCN310A?
The catalogue states 15 kA for NCN310A. Check the datasheet for the value at your system voltage.
Where is the datasheet for NCN310A?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Hager publishes them.
Is NCN310A a genuine Hager product?
Yes. NCN310A is supplied through the manufacturer’s authorised channel with the standard Hager warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | NCN310A |
|---|---|
| Product name | Filter products by 10A 3P 15KA C-curve MCB |
| Brand | Filter products by Hager |
| Product type | Filter products by Miniature circuit breaker |
| Product series | Filter products by NCN series |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Number of modules | Filter products by 3 |
| Rated current (Iu) | Filter products by 10 A |
| Rated operational voltage | 240 / 400 V |
| Rated frequency | Filter products by 50 … 60 Hz |
| Frequency | Filter products by 50-60Hz |
| Tripping curve | Filter products by C |
| Max break capacity | Filter products by 15 kA |
| Breaking capacity (IEC 60898) | Filter products by 10 kA |
Standards & certification
| Conformity to standards | Filter products by 60947-2 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Breaking capacity icu | Filter products by 15kA |
|---|---|
| Breaking capacity icn | Filter products by 10 kA |
