HagerMiniature circuit breakersPower Distribution & Protection

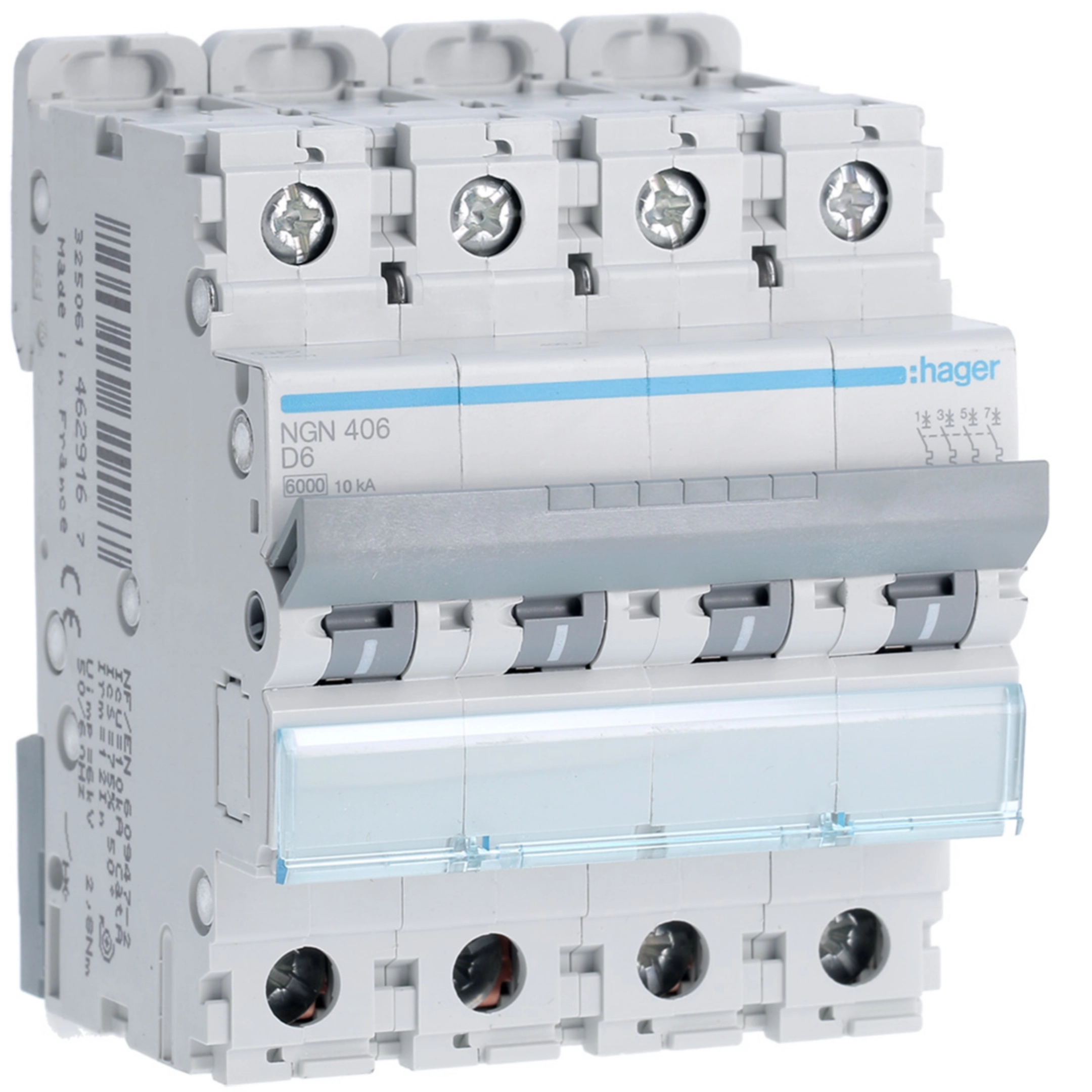

NGN406 – 6A 4P 10KA D-curve MCB | Hager | EM
Order code
R1 764,00
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
6A 4P 10KA D-curve MCB — Hager NGN406. Rated Current: 6A, Rated Operational Voltage: 240/400V. Order from Shop ElectroMechanica; prices exclude VAT.
Download datasheet (opens in a new tab)Download certifications (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
NGN406 – 6A 4P 10KA D-curve MCB | Hager
Miniature circuit breakers (MCB’s)
NGN406 is supplied by ElectroMechanica as part of the Hager range. Prices shown exclude VAT.
Technical specifications
| Product Series | NGN series |
|---|---|
| Rated Current | 6A |
| Number Of Poles | 1 |
| Max Break Capacity | 10kA |
| Product Type | Miniature circuit breaker |
| Width In 17.5 mm Modules | 4 |
| Tripping Curve | D (10-20 In) |
| SANS / IEC Standard | 60947-2 / SANS556 |
| Application | Mainly for motor control/protection |
| Rated Operational Voltage | 240/400V |
| Frequency | 50-60Hz |
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by NGN406 |
|---|---|
| Product name | Filter products by 6A 4P 10KA D-curve MCB |
| Brand | Filter products by Hager |
| Product type | Filter products by Miniature circuit breaker |
| Product series | Filter products by NGN series |
Electrical ratings
| Number of poles | Filter products by 1 |
|---|---|
| Rated current (Iu) | Filter products by 6A |
| Rated operational voltage | Filter products by 240/400V |
| Frequency | Filter products by 50-60Hz |
| Tripping curve | Filter products by D (10-20 In) |
| Max break capacity | Filter products by 10kA |
Mechanical & mounting
| Width in 17 5mm modules | Filter products by 4 |
|---|
Compatibility & application
| Application | Filter products by Mainly for motor control/protection |
|---|
Standards & certification
| SANS / IEC standard | Filter products by 60947-2 / SANS556 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
