MD MicrodetectorsField Switching, Sensing & SafetyInductive proximity sensors
PM3/00-2H – M12 Proxi Swth NPN/PNP/NO/NC 4mm | MD Microdetectors
Order code
R1 113,00
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
M12 Proxi Swth NPN/PNP/NO/NC 4mm — MD Microdetectors order code PM3/00-2H. Supply 10 / 30 V; NO + NC contacts; IP67; Nickel-plated brass.
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)Download instructions (opens in a new tab)
Accessories & add-ons 6
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

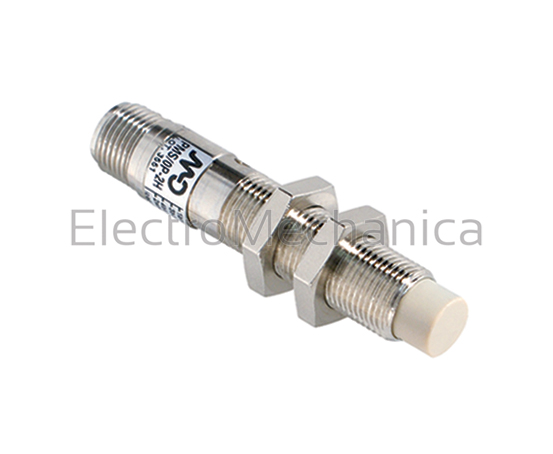

PM3/00-2H — M12 Proxi Swth NPN/PNP/NO/NC 4mm, a m12 standard body proximity switches by MD Microdetectors.
PM3 series M12 decout cylindrical inductive sensors Key features: NPN/PNP/NO/NC on one switch Output: cable, M12 plug cable exit ATEX models, cat. 3, available on request Wide range of models: standard, DECOUT© output.
Key specifications: supply 10 / 30 V; NO + NC contacts; IP67; Nickel-plated brass.
Ordering information
- Order code:
PM3/00-2H - Manufacturer: MD Microdetectors
- Supplied: each
- Datasheet: manufacturer datasheet for PM3/00-2H
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by PM3/00-2H |
|---|---|
| Product name | Filter products by M12 Proxi Swth NPN/PNP/NO/NC 4mm |
| Brand | Filter products by MD Microdetectors |
| Product type | Filter products by M12 standard body proximity switches |
| Product series | Filter products by PM3 series |
Electrical ratings
| Supply voltage | Filter products by 10 / 30 V |
|---|---|
| Supply protection | Filter products by Short circuit and polarity reversal protection |
Contacts, control & I/O
| Contact configuration | Filter products by NO + NC |
|---|---|
| Normally open (NO) | Filter products by Yes |
| Normally closed (NC) | Filter products by Yes |
| Pnp output | Filter products by Yes |
| Npn output | Filter products by Yes |
| Output type | Filter products by PNP+NPN |
| Led indication | Filter products by Output state |
Sensing & measurement
| Sensing distance | Filter products by 4 mm |
|---|
Mechanical & mounting
| Body length | Filter products by 74 mm |
|---|---|
| Flush mount | Filter products by No |
| Non flush mount | Filter products by Yes |
| Material | Filter products by Nickel-plated brass |
Wiring & termination
| Connection | Filter products by M12 |
|---|---|
| Connector | Filter products by M12 plug (4 pin) |
Environment & protection
| Degree of protection (IP) | Filter products by IP67 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Sensor type | Filter products by Non-Flush |
|---|
