CelducSolid-state relaysTimers & Control Relays

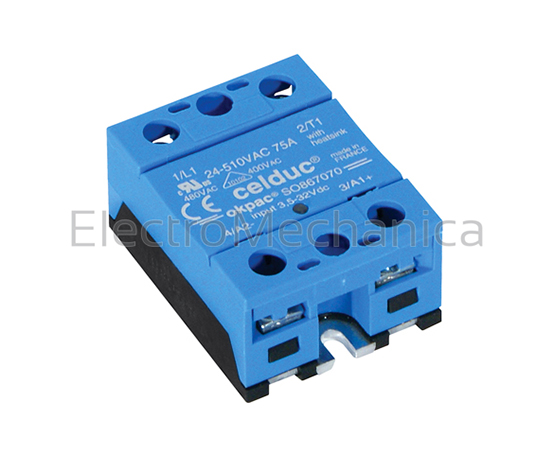

SO867070 – 75A 24-510VAC 1200V SS Relay | Celduc
Order code
List R1 753,50 Your price R1 227,45
Per unit · volume pricing available on request
excl. VAT R1 411,57 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
75A 24-510VAC 1200V SS Relay — Celduc order code SO867070. Control voltage 3.5 / 32 V; IP20; 59.4 × 45 × 30 mm.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)Download instructions (opens in a new tab)
Select a variant in this series
Control voltage3.5 / 32 V3 options
- 3 / 32 V
- 3.5 / 32 V
- 20/265 V DC
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
SO867070 — 75A 24-510VAC 1200V SS Relay, a zero-cross for most loads by Celduc. Listed under Solid-state relays on the Celduc catalogue at RMS-EM.Africa.
About SO867070
Solid state relays (SSR) All Celduc SSR (solid state relays) are fitted with back-to-back thyristors and employ 4th generation ; technology with a very long life expectancy. General features: Control status LED Regulated input current EMC compatible for industrial environment SO8 range for most load types – lamps and infrared Voltage protection on input (transil) and output (VDR) Zero-cross switching with low zero-crossing level (12V) Very high immunity according to IEC/EN 61000-4-4 (bursts) and IEC/EN 61000-4-5 (spikes).
SO867070 key specifications
Key specifications: control voltage 3.5 / 32 V; IP20; 59.4 × 45 × 30 mm.
Ordering information for SO867070
- Order code:
SO867070 - Manufacturer: Celduc
- Supplied: each
- Datasheet: manufacturer datasheet for SO867070
Ordering options in this range
Same product, different coil / control voltage:
SO867970— 20/265 V DC
SO867070 — frequently asked questions
What coil or control voltage does SO867070 use?
SO867070 is supplied with a 3.5 / 32 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
Where is the datasheet for SO867070?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Celduc publishes them.
Is SO867070 a genuine Celduc product?
Yes. SO867070 is supplied through the manufacturer’s authorised channel with the standard Celduc warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | SO867070 |
|---|---|
| Product name | Filter products by 75A 24-510VAC 1200V SS Relay |
| Brand | Filter products by Celduc |
| Product type | Filter products by Zero-cross for most loads |
| Product series | Filter products by SO8 |
Electrical ratings
| Rated current (Iu) | Filter products by 75 A |
|---|---|
| Switching current | Filter products by 75A |
| Switching voltage | Filter products by 24 – 510 VAC |
| Peak voltage | Filter products by 1200V |
| Control voltage | Filter products by 3.5 – 32 VDC |
| Control circuit voltage (Us) | Filter products by 3.5 / 32 V |
Mechanical & mounting
| Dimensions | Filter products by 59.4 × 45 × 30 mm |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Thyristor rating | Filter products by 75A |
|---|
Higher-rated in this range
1 itemsSame series, a larger rating — where the duty is heavier than this part covers.
Higher-rated in this range
1 items
Similar items
8 items
Similar items
8 items
SU86707075A 1200V 24-510VAC SS RelayList R1 774,50 Your price R1 242,15View product
SOM04020040A 5-110VDC SS RelayList R1 932,00 Your price R1 352,40View product
SUL84207025A 12-275VAC SS Relay+HEATSINKList R1 942,50 Your price R1 359,75View product- SUL94246025A 12-280VAC SS Relay+HEATSINKList R1 501,50 Your price R1 051,05View product
- SOM02010020A 5-60VDC SS RelayList R1 438,50 Your price R1 006,95View product
- SUL86597050A 24-510VAC SS Relay+HEATSINKList R1 428,00 Your price R999,60View product
- SU86597050A 1200V 24-510VAC SS RelayList R1 354,50 Your price R948,15View product
WF115100Heatsink – 110 X 90 X 100List R2 194,50 Your price R1 536,15View product
More in Solid-state relays
8 items
More in Solid-state relays
8 items
SMT86205203X20A 24-520VAC 3 Phase SS RelayList R2 667,00 Your price R1 866,90View product- SMT86285203X20A 24-520VAC 3 Phase SS RelayList R2 688,00 Your price R1 881,60View product
SMB86709103X35A 150-520VAC 3PHASE SS RelayList R4 536,00 Your price R3 175,20View product
SGTA46543X50A 300-510V PRO/TIONAL 3PH SSRList R10 321,50 Your price R7 225,05View product- SMB86505103X30A 24-520VAC 3PHASE SS RelayList R3 622,50 Your price R2 535,75View product
SGT98343003X30A 24-660VAC 3PH SS RelayList R3 297,00 Your price R2 307,90View product- SGT98543003x42A; 24 – 660VAC 3PH SS RelayList R3 181,50 Your price R2 227,05View product
- SGT98743003x54A 24 – 660VAC 3PH SS RelayList R3 769,50 Your price R2 638,65View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is SO867070?
SO867070 is the order code for 75A 24-510VAC 1200V SS Relay. It belongs to our Solid-state relays range. RMS-EM.Africa supplies it as genuine Celduc product, sourced through the manufacturer's distribution channel.
What is the rated current of SO867070?
Celduc rates 75A 24-510VAC 1200V SS Relay at 75 A.
What coil voltage does SO867070 take?
75A 24-510VAC 1200V SS Relay takes a 3.5 – 32 VDC coil. Order the coil voltage that matches your control circuit.
What is the IP rating of SO867070?
Celduc gives it a degree of protection of IP20.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
