HagerEnclosures & Climate ControlFloor-standing distribution boards
UC020H – Mount KIT MCCB 250A 300x350W | Hager
Order code
R2 310,00
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order

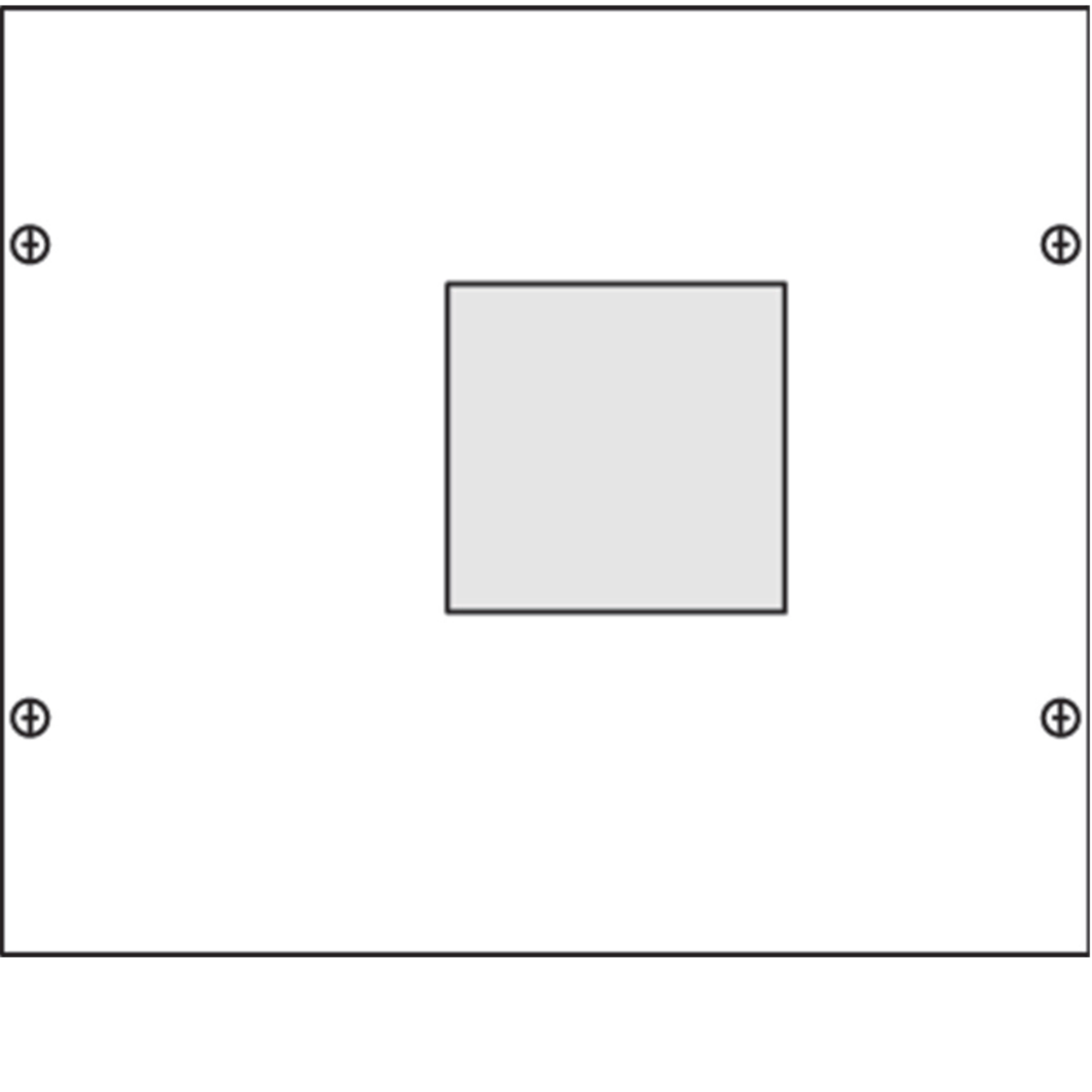

Mount KIT MCCB 250A 300x350W — Hager order code UC020H. IP55; RAL9010, (plinth RAL7042).
Download certifications (opens in a new tab)Download datasheet (opens in a new tab)Download instructions (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
UC020H — Mount KIT MCCB 250A 300x350W by Hager.
Quadro 5 floor standing distribution board system The Quadro5 system offers a sophisticated, aestheticallypleasing, protected (IP55 with door) enclosure which can be attached sidebyside to one another horizontally to satisfy most distribution board requirements. Quadro 5 accepts equipment kits for the assembly of devices and power distribution up to 630A. A complete floor-standing distribution board system is made up of the following: 1) Main structure with back plate (height) 1260 or 2010 mm / (width) 450 or 700 mm / (depth) 260 mm 2) Pair of side plates (left and right) 3) Door (plain or transparent) 4) Required equipment mounting kits (front covers and assembly rails) for MCBs (miniature circuit breakers) and modular devices for MCCBs (moulded case circuit breakers)/ Component: Equipment mounting kits (for Quadro 5 system) Comprises: mounting accessories and front covers for MCBs and MCCBs For 450 mm wide (narrow) panels SERIES Quadro 5 series.
Key specifications: IP55; RAL9010, (plinth RAL7042).
Ordering information
- Order code:
UC020H - Manufacturer: Hager
- Supplied: each
- Datasheet: manufacturer datasheet for UC020H
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by UC020H |
|---|---|
| Product name | Filter products by Mount KIT MCCB 250A 300x350W |
| Brand | Filter products by Hager |
| Product series | Filter products by Quadro 5 series |
Mechanical & mounting
| Colour | Filter products by RAL9010, (plinth RAL7042) |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP55 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
