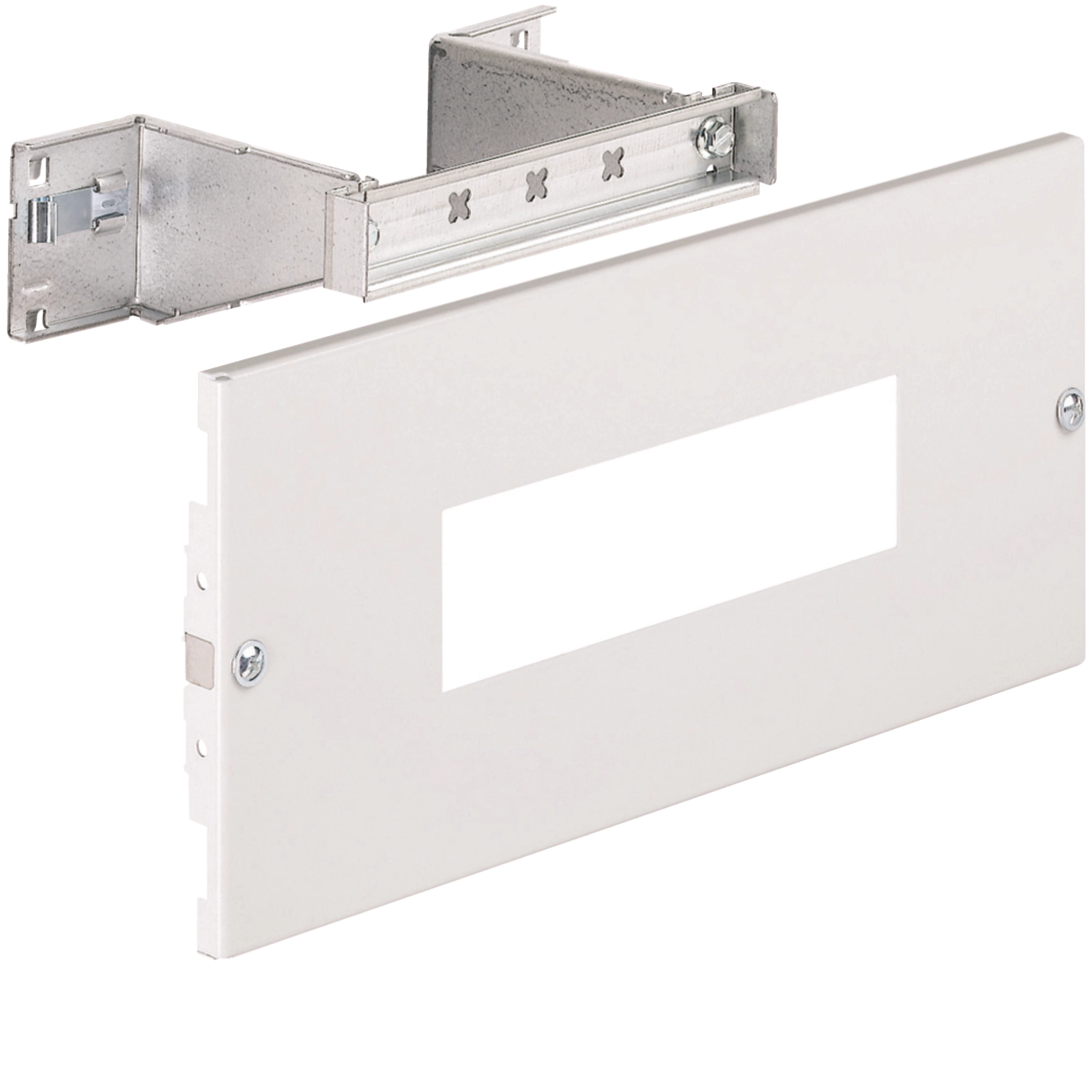

About UC200

Quadro 5 floor standing distribution board system The Quadro5 system offers a sophisticated, aestheticallypleasing, protected (IP55 with door) enclosure which can be attached sidebyside to one another horizontally to satisfy most distribution board requirements. Quadro 5 accepts equipment kits for the assembly of devices and power distribution up to 630A. A complete floor-standing distribution board system is made up of the following: 1) Main structure with back plate (height) 1260 or 2010 mm / (width) 450 or 700 mm / (depth) 260 mm 2) Pair of side plates (left and right) 3) Door (plain or transparent) 4) Required equipment mounting kits (front covers and assembly rails) for MCBs (miniature circuit breakers) and modular devices for MCCBs (moulded case circuit breakers)/ Component: Equipment mounting kits (for Quadro 5 system) Comprises: mounting accessories and front covers for MCBs and MCCBs For 450 mm wide (narrow) panels SERIES Quadro 5 series.

UC200 key specifications

Key specifications: IP55; RAL9010, (plinth RAL7042).

Ordering information for UC200

• Order code: UC200
• Manufacturer: Hager
• Supplied: each
• Datasheet: manufacturer datasheet for UC200

UC200 — frequently asked questions

Where is the datasheet for UC200?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Hager publishes them.

Is UC200 a genuine Hager product?

Yes. UC200 is supplied through the manufacturer’s authorised channel with the standard Hager warranty, and every order is confirmed against stock before payment.
