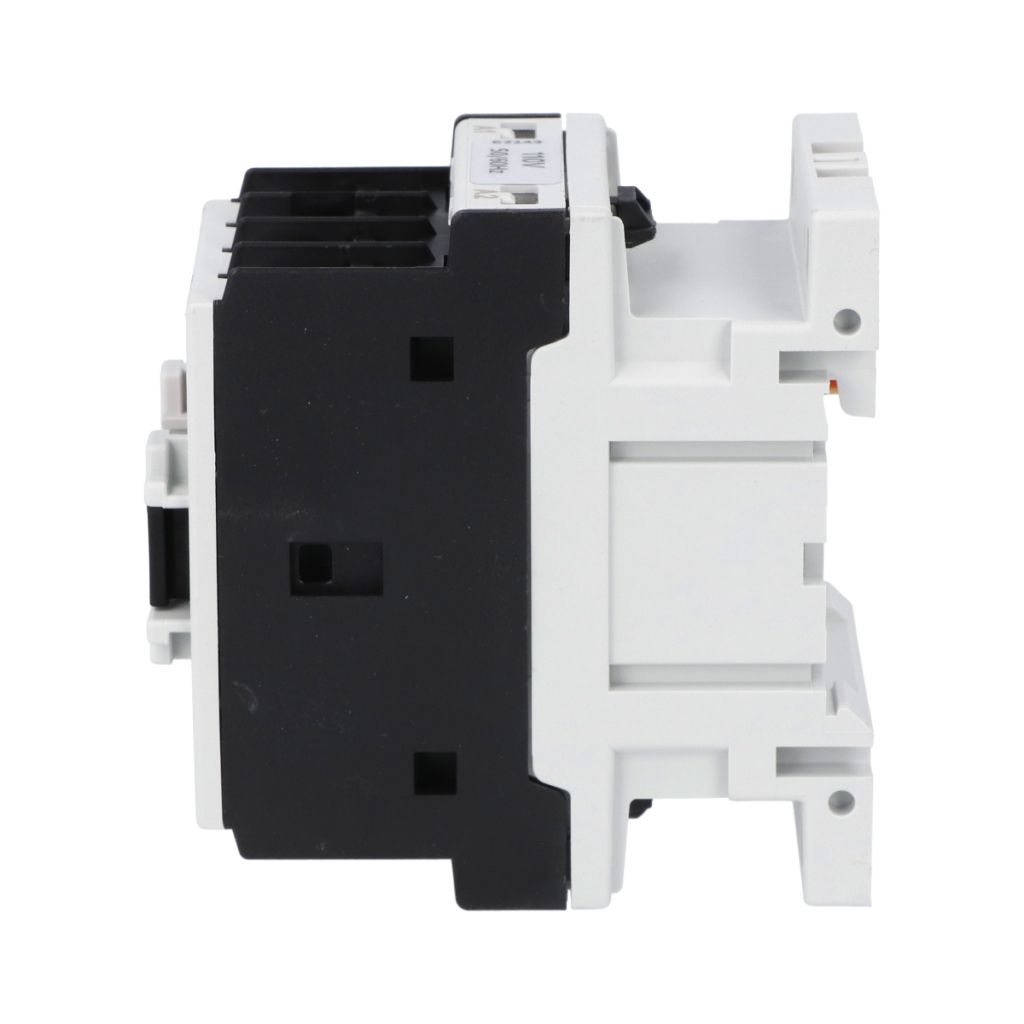

About BF0901A110

BF series Three-pole contactors (Ui 690V) The Lovato contactor range offers only the finest in quality and reliability. The contactors are geared for easy installation with a snap-on mounting feature. Available in both AC and DC, Lovato contactors offers a solution for any installation. Key Features: Coils with wide operating range 55mm wide contactors up to 80a in AC3 (45kW) with a width of just 55mm 45mm wide contactors- merely 45mm wide: exceptional benefit for electric panel dimensions 4-terminal coil connecting cables can be coupled to the coil both on the line and load ends of the contactor Built-in surge suppressor BF series contactors up to 80A AC3 with voltages in DC or AC/DC already have a built-in surge suppressor Low-consumption coils. The BF…L contactors feature a 2.4W low consumption. This characteristic widely allows their direct control by PLC outputs Electronic coil. Contactors from 40 to 80A AC3 can be equipped with AC/DC electronic coil with wide operating range. Example: single 100 to 250V AC/DC coil.

BF0901A110 key specifications

Key specifications: rated current 25 A; AC-3 rated current 9 A; AC-3 motor rating 4.2 kW at 400 V; 3P; control voltage 110 V; 3 NO contacts; auxiliary contacts 1 NC.

Ordering information for BF0901A110

• Order code: BF0901A110
• Manufacturer: Lovato Electric
• Supplied: each
• Datasheet: manufacturer datasheet for BF0901A110

How to read the order code

• BF — Lovato BF contactor
• 09 — AC-3 rating 9 A
• A110 — coil 110 V AC

Ordering options in this range

Same product, different coil / control voltage:

• BF0901A024 — 24 V
• BF0901A230 — 230 V
• BF0901A400 — 400 V

BF0901A110 — frequently asked questions

What is the rated current of BF0901A110?

BF0901A110 is rated 25 A.

What motor rating can BF0901A110 switch?

BF0901A110 is rated for 4.2 kW at 400 V (AC-3, three-phase).

What coil or control voltage does BF0901A110 use?

BF0901A110 is supplied with a 110 V coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.

How many poles does BF0901A110 have?

BF0901A110 is a 3P device.

Where is the datasheet for BF0901A110?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Lovato Electric publishes them.

Is BF0901A110 a genuine Lovato Electric product?

Yes. BF0901A110 is supplied through the manufacturer’s authorised channel with the standard Lovato Electric warranty, and every order is confirmed against stock before payment.
