ElectroPlug-in timing & Monitoring devicesTimers & Control Relays

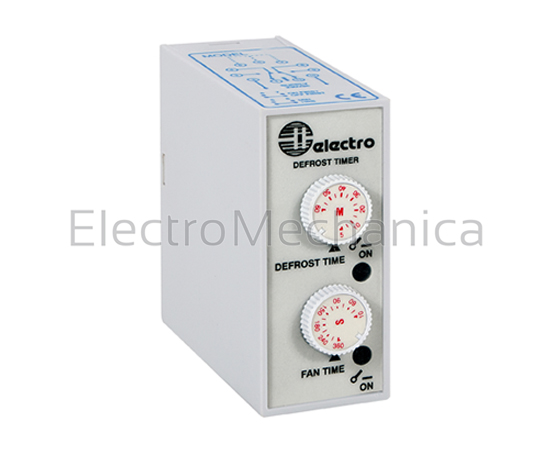

DEF1/F230A – Defrost Timer with FAN Delay | Electro
Order code
R1 081,50
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Defrost Timer with FAN Delay — Electro order code DEF1/F230A. Rated voltage 250 V; supply 230 V; IP20; operating temperature −10 … +50 °C.
Accessories & add-ons 3
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
DEF1/F230A — Defrost Timer with FAN Delay by Electro.
Defrost timer (with fan delay) The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient. Configurable for 4-hour (defrost cycle every 4 hours) or 8 hour cycles. Application of supply starts the pre-select 1-60 minute defrost cycle, thereafter the relay switches to the cooling cycle activating the pre-set 1-60 second fan delay period (to prevent water splatter and warm air blowing into the room) and then starts the fan. table CYCLE 4 or 8 hour DEFROST 3-60 minute FAN 3-60 second DESCRIPTION Defrost timer.
Key specifications: rated voltage 250 V; supply 230 V; IP20; operating temperature −10 … +50 °C; 92 × 36 × 64 mm.
Ordering information
- Order code:
DEF1/F230A - Manufacturer: Electro
- Supplied: each
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | Filter products by DEF1/F230A |
|---|---|
| Product name | Filter products by Defrost Timer with FAN Delay |
| Brand | Filter products by Electro |
| Product type | Filter products by Defrost timer |
Electrical ratings
| Rated voltage (Ue) | Filter products by 250 V |
|---|---|
| Supply voltage | Filter products by 230 V |
| Mechanical life | Filter products by 10×106 cycles |
Mechanical & mounting
| Dimensions | Filter products by 92 × 36 × 64 mm |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|---|
| Operating temperature | Filter products by −10 … +50 °C |
| Storage temperature | Filter products by '-50 to + 85°C |
