ElectroPlug-in timing & Monitoring devicesTimers & Control Relays

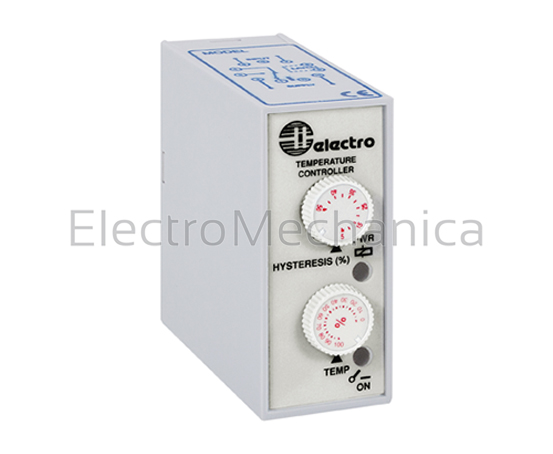

T1R/180S110A – Temperature Controller 110VAC | Electro
Order code
List R1 081,50 Your price R757,05
Per unit · volume pricing available on request
excl. VAT R870,61 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Temperature Controller 110VAC — Electro order code T1R/180S110A. Rated voltage 250 V; supply 110 V; 10A SPDT contacts; IP20.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)
Select a variant in this series
Supply voltage110 V2 options
- 110 V
- 230 V
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
T1R/180S110A — Temperature Controller 110VAC by Electro. Listed under Plug-in timing & Monitoring devices on the Electro catalogue at RMS-EM.Africa.
About T1R/180S110A
Temperature Controller The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient. Temperature control unit or a standard three wire PT100 resistive temperature sensor with two selectable temperature ranges. The unit can be configured for OVER or UNDER temperature and has an adjustment for temperature and hysteresis. Features: Output 10A SPDT Fail-safe control feature Power supply ON and Relay ON LEDs Potentiometer adjustable hysteresis setting Potentiometer adjustable temperature setting Direct connection to PT100 temperature sensor Rear DIP switch selection of 2 temperature ranges DESCRIPTION Temperature controller CONTACT 10A.
T1R/180S110A key specifications
Key specifications: rated voltage 250 V; supply 110 V; 10A SPDT contacts; IP20; operating temperature −10 … +50 °C.
Ordering information for T1R/180S110A
- Order code:
T1R/180S110A - Manufacturer: Electro
- Supplied: each
- Datasheet: manufacturer datasheet for T1R/180S110A
T1R/180S110A — frequently asked questions
Where is the datasheet for T1R/180S110A?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Electro publishes them.
Is T1R/180S110A a genuine Electro product?
Yes. T1R/180S110A is supplied through the manufacturer’s authorised channel with the standard Electro warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | T1R/180S110A |
|---|---|
| Product name | Filter products by Temperature Controller 110VAC |
| Brand | Filter products by Electro |
| Product type | Filter products by Temperature controller |
Electrical ratings
| Rated voltage (Ue) | Filter products by 250 V |
|---|---|
| Supply voltage | Filter products by 110 V |
| Mechanical life | Filter products by 10×106 cycles |
Contacts, control & I/O
| Contact | Filter products by 10A SPDT |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|---|
| Operating temperature | Filter products by −10 … +50 °C |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| Input signal | Filter products by PT100 |
|---|
