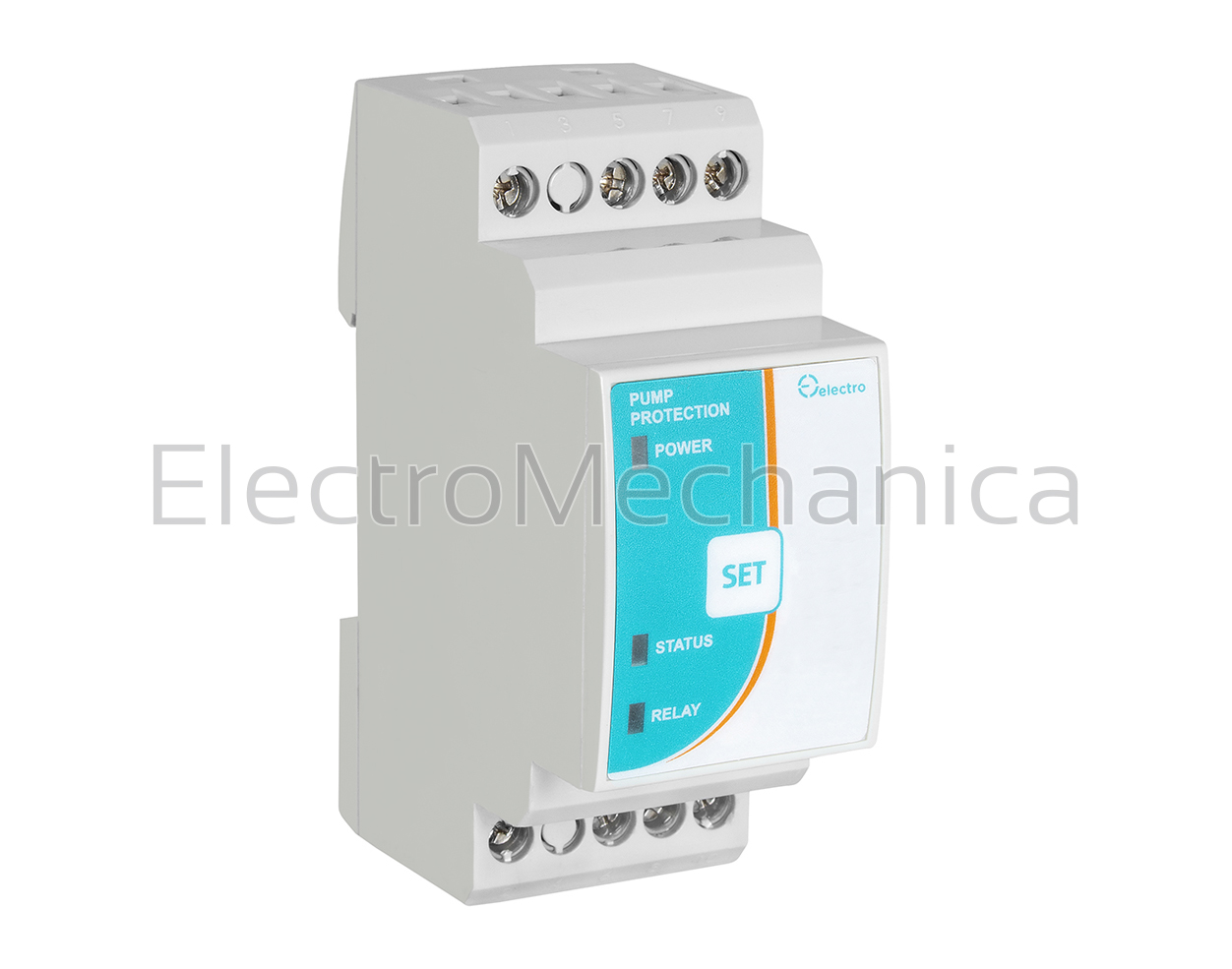

DPP3400A – 3 PH Pump Protection Relay 400VAC | Electro

DPP3400A — 3 PH Pump Protection Relay 400VAC by Electro. Listed under Protection relays & Monitoring devices on the Electro catalogue at RMS-EM.Africa.

About DPP3400A

Advanced pump protection relay The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's). Advance pump protection relay to safeguard against damage to borehole pumps. The unit is easily calibrated and then monitors all important pump characteristics. All parameters are saved in non-volatile memory to be available even after power loss. A re-start delay ensures the borehole replenishing before pumping starts again. Features: LED indication for faults Automatic diagnosis of pump Security input to control pump Front face calibration / reset button High current 16A SPST output relay LED indication for power supply ON Modular 35.5mm DIN rail mountable High current sensing input (up to 15A) Monitors over and under voltage/current Under current ( dry running ) restart delay High resolution analogue microprocessor DESCRIPTION Three phase pump protection relay CONTACT 16A.

DPP3400A key specifications

Key specifications: 16A SPDT contacts.

Ordering information for DPP3400A

• Order code: DPP3400A
• Manufacturer: Electro
• Supplied: each
• Datasheet: manufacturer datasheet for DPP3400A

DPP3400A — frequently asked questions

Where is the datasheet for DPP3400A?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Electro publishes them.

Is DPP3400A a genuine Electro product?

Yes. DPP3400A is supplied through the manufacturer’s authorised channel with the standard Electro warranty, and every order is confirmed against stock before payment.
