ElectroProtection relays & Monitoring devicesTimers & Control Relays

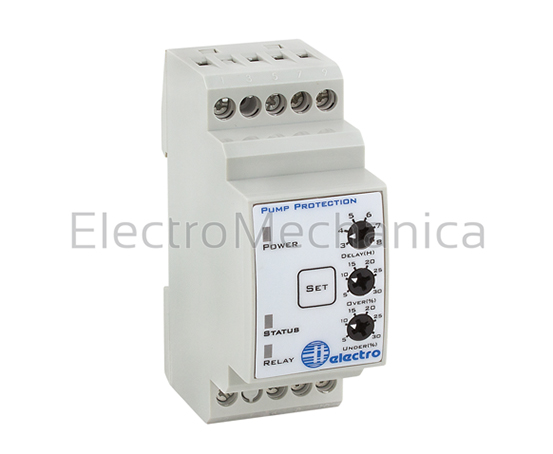

DPP4400A – 3 PH ADJ Pump Protec Relay 400VAC | Electro
Order code
List R1 491,00 Your price R1 043,70
Per unit · volume pricing available on request
excl. VAT R1 200,26 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
3 PH ADJ Pump Protec Relay 400VAC — Electro order code DPP4400A. 16A SPDT contacts.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
DPP4400A — 3 PH ADJ Pump Protec Relay 400VAC, a three phase pump protection relay (with adjustment /function selection) by Electro. Listed under Protection relays & Monitoring devices on the Electro catalogue at RMS-EM.Africa.
About DPP4400A
Advanced pump protection relay The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB's). Advance pump protection relay to safeguard against damage to borehole pumps. The unit is easily calibrated and then monitors all important pump characteristics. All parameters are saved in non-volatile memory to be available even after power loss. A re-start delay ensures the borehole replenishing before pumping starts again. Features: LED indication for faults Automatic diagnosis of pump Security input to control pump Front face calibration / reset button High current 16A SPST output relay LED indication for power supply ON Modular 35.5mm DIN rail mountable High current sensing input (up to 15A) Monitors over and under voltage/current Under current ( dry running ) restart delay High resolution analogue microprocessor DESCRIPTION Three phase pump protection relay (with adjustment /function selection) CONTACT 16A.
DPP4400A key specifications
Key specifications: 16A SPDT contacts.
Ordering information for DPP4400A
- Order code:
DPP4400A - Manufacturer: Electro
- Supplied: each
- Datasheet: manufacturer datasheet for DPP4400A
DPP4400A — frequently asked questions
Where is the datasheet for DPP4400A?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Electro publishes them.
Is DPP4400A a genuine Electro product?
Yes. DPP4400A is supplied through the manufacturer’s authorised channel with the standard Electro warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | DPP4400A |
|---|---|
| Product name | Filter products by 3 PH ADJ Pump Protec Relay 400VAC |
| Brand | Filter products by Electro |
| Product type | Filter products by Three phase pump protection relay (with adjustment /function selection) |
Electrical ratings
| Switching current | Filter products by 16A |
|---|
Contacts, control & I/O
| Contact | Filter products by 16A SPDT |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| Supply phases | Filter products by 3 |
|---|---|
| Number of phase s | Filter products by 3 |
| Monitored voltage | Filter products by 320-460VAC |
Similar items
8 items
Similar items
8 items
270270Modular Current Monitoring RelayList R1 543,50 Your price R1 080,45View product
DPP3400A3 PH Pump Protection Relay 400VACList R1 417,50 Your price R992,25View product- DPP1230A1 PH Pump Protection Relay 230VACList R1 281,00 Your price R896,70View product
DCM5024DCurrent Monitor 5A CT; 24VDCList R1 711,50 Your price R1 198,05View product
DCW5230ACurrent Comparator 5A CT; 230VACList R1 270,50 Your price R889,35View product- DCM5230ACurrent Monitor 5A CT; 230VACList R1 270,50 Your price R889,35View product
- DCM5400ACurrent Monitor 5A CT; 400VACList R1 270,50 Your price R889,35View product
- DCW15230A15A Current Comparator DIR 230VACList R1 270,50 Your price R889,35View product
More in Protection relays & Monitoring devices
8 items
More in Protection relays & Monitoring devices
8 items
DT3-CT100A100A CT for Fault DetectionList R540,75 Your price R378,52View product
V1C230A400MVVoltage Monitor 40-400VAC; 230VACList R993,30 Your price R695,31View product
DRC/S 10-30VDCRadio SIG Extend Slave 10-30vdcList R2 194,50 Your price R1 536,15View product
DLS230ALoad Shed Relay 230VAC 16A DirectList R1 218,00 Your price R852,60View product
DRC/M 10-30VDCRadio SIG Extend Master 10-30vdcList R2 331,00 Your price R1 631,70View product
DVW3400A3 Phase Voltage Comparator 400VACList R1 113,00 Your price R779,10View product- DVW3525A3 Phase Voltage Comparator 525VACList R1 113,00 Your price R779,10View product
- DVW3N400A3 Phase Voltage Comparator 400VACList R1 102,50 Your price R771,75View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is DPP4400A?
DPP4400A is the order code for 3 PH ADJ Pump Protec Relay 400VAC. It belongs to our Protection relays & Monitoring devices range. RMS-EM.Africa supplies it as genuine Electro product, sourced through the manufacturer's distribution channel.
What is the IP rating of DPP4400A?
Electro gives it a degree of protection of IP20.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
