HagerMiniature circuit breakersPower Distribution & Protection
MJT725 – 25A 1PH+N 4.5KA C-curve MCB | Hager
Order code
List R313,95 Your price R219,76
Per unit · volume pricing available on request
excl. VAT R252,72 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
25A 1PH+N 4.5KA C-curve MCB — Hager order code MJT725. Rated current 25 A; 1P; breaking capacity 4.5 kA; C curve.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Download datasheet (opens in a new tab)Download certifications (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised ElectroMechanica distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

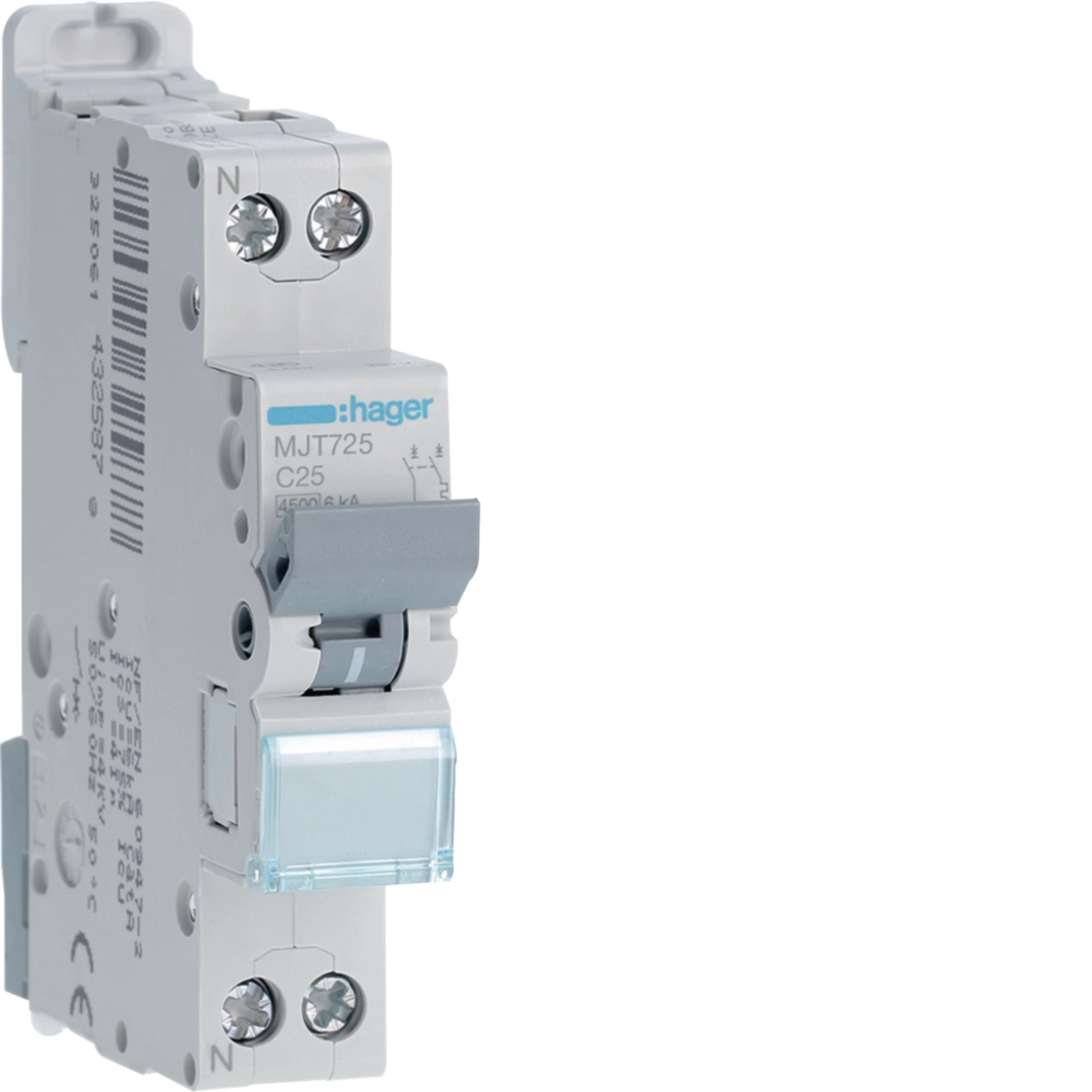

MJT725 — 25A 1PH+N 4.5KA C-curve MCB, a miniature circuit breaker by Hager. Listed under Miniature circuit breakers on the Hager catalogue at RMS-EM.Africa.
About MJT725
Miniature circuit breakers (MCB's) Protection and control of circuits against overload and short circuits Suitable for domestic and commercial installations. Suitable for domestic and commercial installations. Features: Accepts clip-on: auxiliaries, shunt trip, undervoltage and earth leakage Trip indication – yellow flag on toggle indicates either "overload" or "short circuit" trip.
MJT725 key specifications
Key specifications: rated current 25 A; 1P; breaking capacity 4.5 kA; C curve; operating temperature −25 … +60 °C; 1 modules wide; to 60947-2 / SANS556.
Ordering information for MJT725
- Order code:
MJT725 - Manufacturer: Hager
- Supplied: each
- Datasheet: manufacturer datasheet for MJT725
MJT725 — frequently asked questions
What is the rated current of MJT725?
MJT725 is rated 25 A.
How many poles does MJT725 have?
MJT725 is a 1P device.
What is the breaking capacity of MJT725?
The catalogue states 4.5 kA for MJT725. Check the datasheet for the value at your system voltage.
Where is the datasheet for MJT725?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Hager publishes them.
Is MJT725 a genuine Hager product?
Yes. MJT725 is supplied through the manufacturer’s authorised channel with the standard Hager warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Order code | MJT725 |
|---|---|
| Product name | Filter products by 25A 1PH+N 4.5KA C-curve MCB |
| Brand | Filter products by Hager |
| Product type | Filter products by Miniature circuit breaker |
| Product series | Filter products by MJT series |
Electrical ratings
| Number of poles | Filter products by 1P |
|---|---|
| Number of modules | Filter products by 1 |
| Rated current (Iu) | Filter products by 25 A |
| Tripping curve | Filter products by C |
| Max break capacity | Filter products by 4.5 kA |
Contacts, control & I/O
| Neutral position | Filter products by Left |
|---|
Environment & protection
| Operating temperature | Filter products by −25 … +60 °C |
|---|
Standards & certification
| Conformity to standards | Filter products by 60947-2 / SANS556 |
|---|
Documents
| Datasheet | Download datasheet |
|---|---|
| Certifications | Download certifications |
| Instructions for use | Download instructions |
Other specifications
| Breaking capacity icu | Filter products by 4.5kA |
|---|
